36v Waterbottle Lithium Battery

36v Waterbottle Lithium Battery

36v Waterbottle Lithium Battery

Send Inquiry
Product Details

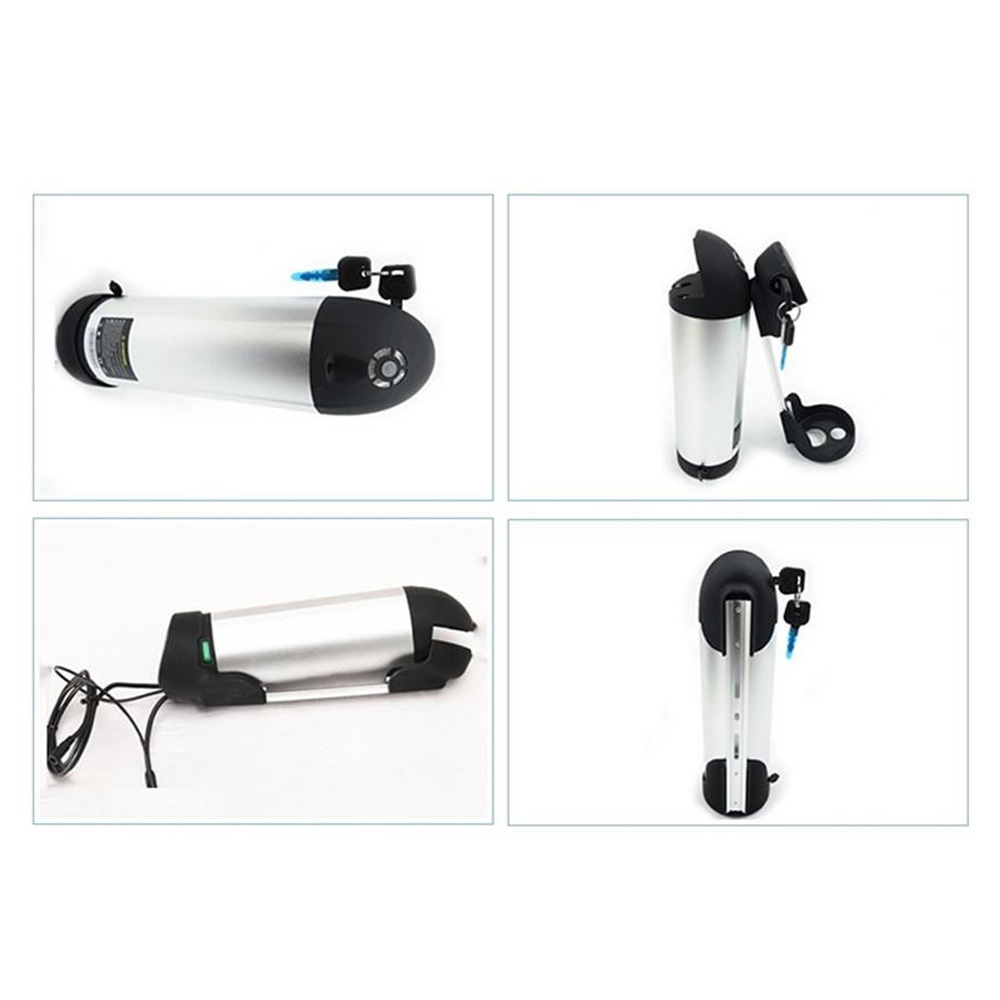

36V water bottle battery

Battery Material

Lithium ion 18650

Lithium ion 18650

Lithium ion 18650

Lithium ion 18650

2200mah cell

2400mah

3200mah cell

2600mah cell

2200mah

2400mah

3200mah

26H

Nominal Voltage

36V

36V

36V

36V

Rated Capicaty

8.8Ah

9.6Ah

12.8Ah

10.4Ah

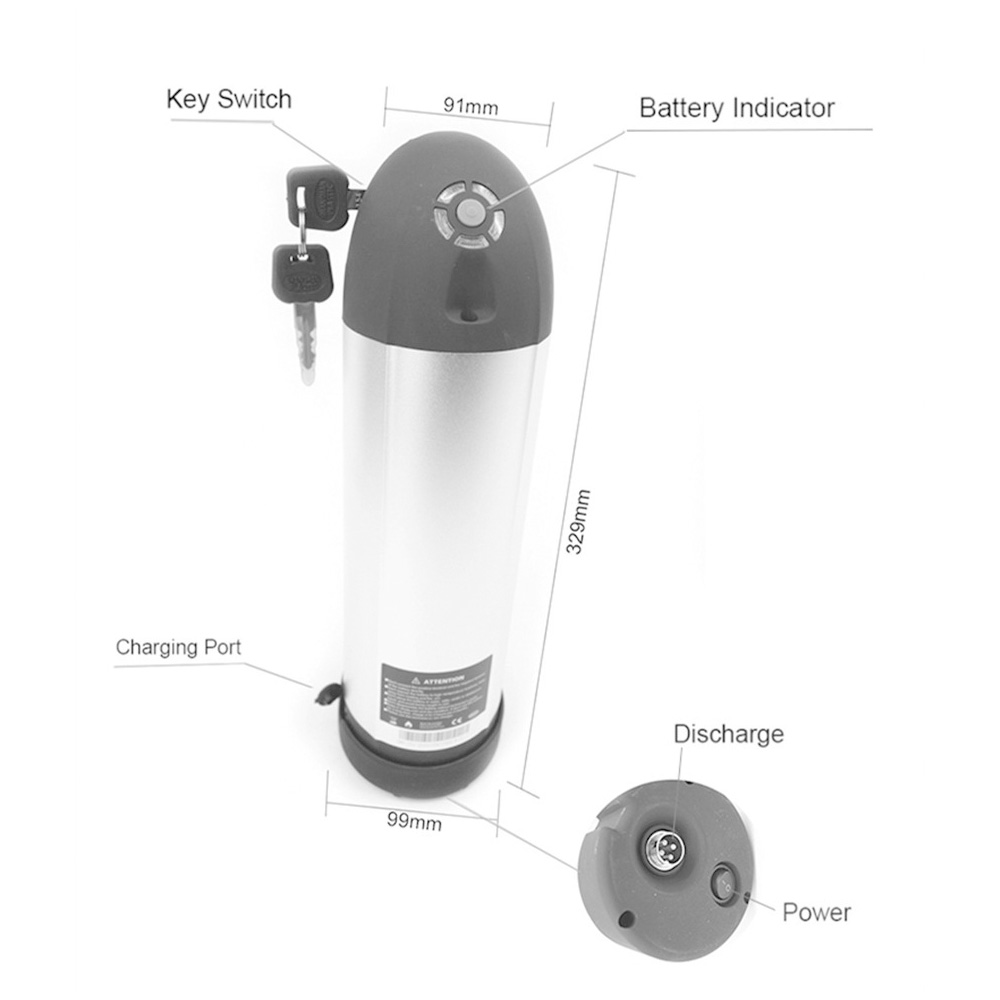

Size

L329*W99*H91mm

L329*W99*H91mm

L329*W99*H91mm

L329*W99*H91mm

Internal Impedance

≤100mΩ

≤100mΩ

≤100mΩ

≤100mΩ

Max Charge Voltage

42V

42V

42V

42V

Max Charge Current

3A

3A

3A

3A

Min Discharge Voltage

29V

29V

29V

29V

Rated Discharge Current

17A

20A

25A

20A

Max Discharge Current

25A

35A

40A

35A

Charging Mode

CC/CV

CC/CV

CC/CV

CC/CV

Pack Weight

About 3.5kg

About 3.7kg

About 3.9kg

About 4.1kg

Over Current Protection

25A±3A

35A±3A

45A±3A

35A±3A

Cycle Life

1000cycles

1000cycles

1000cycles

1000cycles

Charge Temperature

0-45℃

0-45℃

0-45℃

0-45℃

Discharge Temperature

-20-55℃

-20-55℃

-20-55℃

-20-55℃

Certificates

CE

CE

CE

CE

Motor Max

350W

500W

750W

500W

1. Material is aluminum shell;

2. All kinds of cells for your choose;

3. USB port (optional);

4. The controller can be built into the battery(optional);

5. Convenient Charge Port;

6. Lock with Keys securely locks the mount on bike frame.




(1) Environmental friendly;

(2) High density of energy;

(3) Light weight;

(4) Low self-discharge;

(5) Low internal resistance;

(6) Long cycle life, chargeable up to 1000 times;

(7) No memory effect;

(8) Doesn’t contain Mercury, No fire, No explosion, No leakage;

(9) BMS for battery over charge, over discharge, short circuit protection;

(10) Triangle Bag: Enough space to put battery, Controller and Cables Inside.


1.We  produce  sample for confirmation and as the order confirmed,will return back the sample fee   for customers.

2.We are capable of providing specific specification products you want.

3.We are ready to assist with any questions or problems.

4.We treat clients as friend. Quick response in 12-24 hours. Two years warranty for motor, one half  year warranty for battery.

5.We have strict quality control system .Good reputation in the market. Each product is test  100% good before shipping.
