QT36v battery | |||
Battery Material | Lithium ion 18650 | Lithium ion 18650 | Lithium ion 2900mah |
2400mah | 2600mah cell | NCR18650PF | |
2400mah | 26H | 29pf | |
Nominal Voltage | 36V | 36V | 36V |
Rated Capicaty | 12Ah | 13Ah | 14.5Ah |

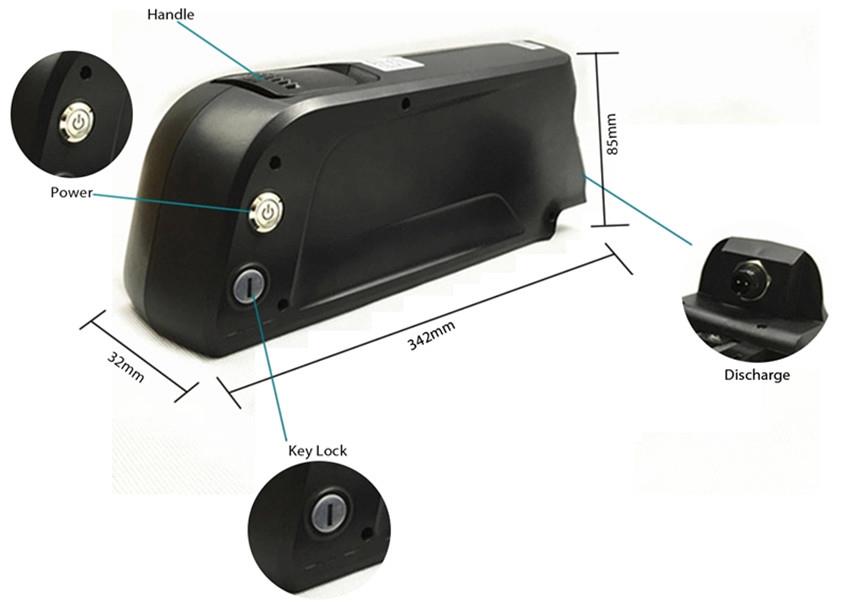

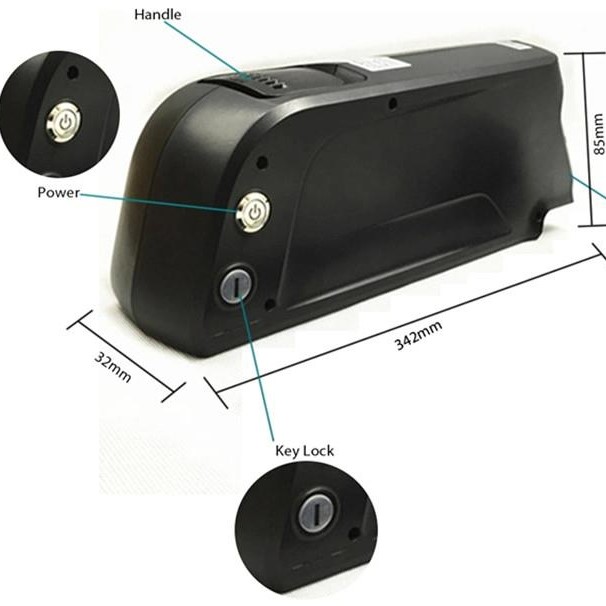

Size | L342*H32*W85mm | L342*H32*W85mm | L342*H32*W85mm |
Internal Impedance | ≤100mΩ | ≤100mΩ | ≤100mΩ |
Max Charge Voltage | 42V | 42V | 42V |
Max Charge Current | 3A | 3A | 4A |
Min Discharge Voltage | 29V | 29V | 29V |
Rated Discharge Current | 20A | 20A | 25A |
Max Discharge Current | 40A | 35A | 45A |
Charging Mode | CC/CV | CC/CV | CC/CV |
Pack Weight | About 3.5kg | About 3.8kg | About 4.2kg |
Over Current Protection | 45A±3A | 40A±3A | 50A±3A |
Cycle Life | 1000cycles | 1000cycles | 1000cycles |
Charge Temperature | 0-45℃ | 0-45℃ | 0-45℃ |
Discharge Temperature | -20-55℃ | -20-55℃ | -20-55℃ |
Certificates | CE | CE | CE |
Motor Max | 750W | 500W | 750W |
(1) Environmental friendly;
(2) High density of energy;
(3) Light weight;
(4) Low self-discharge;
(5) Low internal resistance;
(6) Long cycle life, chargeable up to 1000 times;
(7) No memory effect;
(8) Doesn’t contain Mercury, No fire, No explosion, No leakage;
(9) BMS for battery over charge, over discharge, short circuit protection.
(1) Waterproof and Solid plastic Case;
(2) FST cell , LG cell, Samsung cell , Panasonic cell for your choose;
(3) USB port for charging mobile phone;
(4) Convenient Charge Port;
(4) Lock with Keys securely locks the mount on bike frame.
1.We produce sample for confirmation and as the order confirmed,will return back the sample fee for customers.
2.We are capable of providing specific specification products you want.
3.We are ready to assist with any questions or problems.
4.We treat clients as friend. Quick response in 12-24 hours. Two years warranty for motor, one half year warranty for battery.
5.We have strict quality control system .Good reputation in the market. Each product is test 100% good before shipping.
If you have any questions, don't hesitate to contact us.
