36V Triangle Lithium Battery For 250w

36V Triangle Lithium Battery For 250w

36V Triangle Lithium Battery for 250w electric bike kit or electric bicycle

Send Inquiry
Product Details

36V Bare Lithium battery

Battery Material

Lithium ion 18650

Lithium ion 18650

Lithium ion 18650

2200mah cell

2200mah cell

2600mah cell

FST 2200mah

FST 2200mah

Samsung 26F

Nominal Voltage

36V

36V

36V

Rated Capicaty

11Ah

15.4Ah

18.2Ah

Size

L342*H32*W78mm

L342*H32*W78mm

L342*H32*W78mm

Internal Impedance

≤100mΩ

≤120mΩ

≤120mΩ

Max Charge Voltage

42V

42V

42V

Max Charge Current

3A

4A

5A

Min Discharge Voltage

29V

29V

29V

Rated Discharge Current

15A

22A

26A

Max Discharge Current

25A

40A

40A

Charging Mode

CC/CV

CC/CV

CC/CV

Pack Weight

About 2.2kg

About 3 kg

About 3.5kg

Over Current Protection

30A±3A

45A±3A

45A±3A

Cycle Life

800cycles

1000cycles

1000cycles

Charge Temperature

0-45℃

0-45℃

0-45℃

Discharge Temperature

-20-55℃

-20-55℃

-20-55℃

Certificates

CE

CE

CE

Motor Max

350w

500W

750W

1. Firstly, Put The Output Of Charge Plug Into The Charging Port Of Battery. And Then Put The AC Power Plug Of Charger Into The City’s Electric Socket.

2. In Charging, The Indicator Light Of Charge Is Red. When The Light Is Green, It Means That The Battery Has Been Full Of Power.

3. Please Use The Specified Charger And Reference Our Requirements In This Specification When You Charge. Use The Constant Current And Constant Voltage, Reverse Charging Is Not Allowed.

4. When You Use, Charging Or Stock The Battery Pack, If You Find The Battery Pack Is Heat, Bad Smell, Color Fade, Deform Or Any Other Bad Feeling, Please Stop To Use It.

5. If The Charging Is Not Stopped In The Provisions Time, Please Stop Charging.


1. Fast Charging;

2. Large Overcharge Tolerance And Safer Performance;

3. Self Balance;

4. Simplifying Battery Management System (BMS) And Battery Charger;

5. Longer Cycle Life;

6. High Temperature Performance.


(1) Environmental Friendly;

(2) High Density Of Energy;

(3) Light Weight;
(4) Low Self-Discharge;
(5) Low Internal Resistance;
(6) Long Cycle Life, Chargeable Up To 1000 Times;

(7) No Memory Effect;

(8) Doesn’t Contain Mercury, No Fire, No Explosion, No Leakage;

(9) BMS For Battery Over Charge, Over Discharge, Short Circuit Protection;

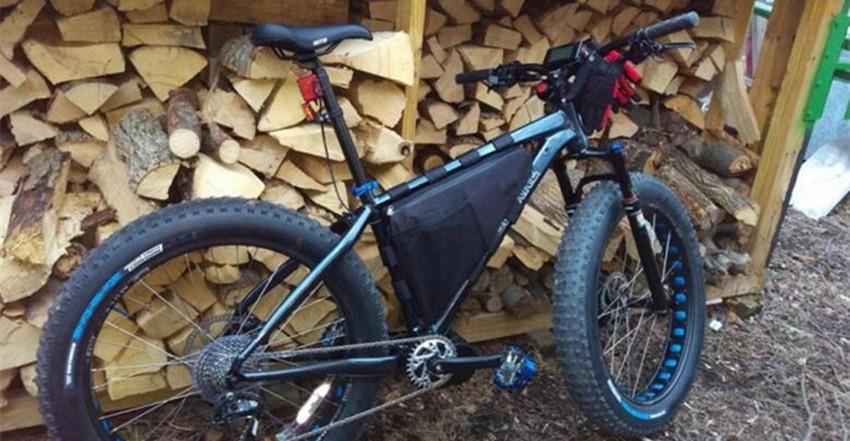

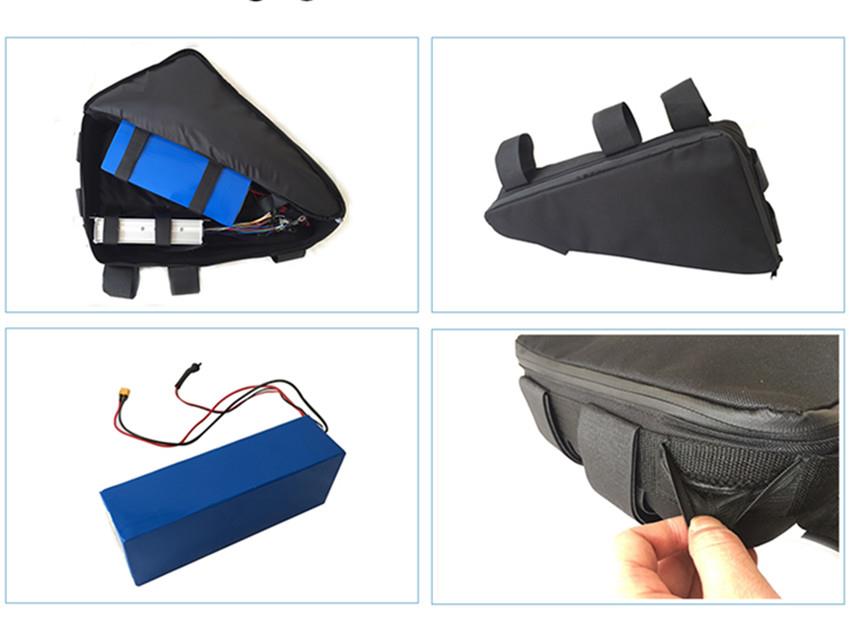

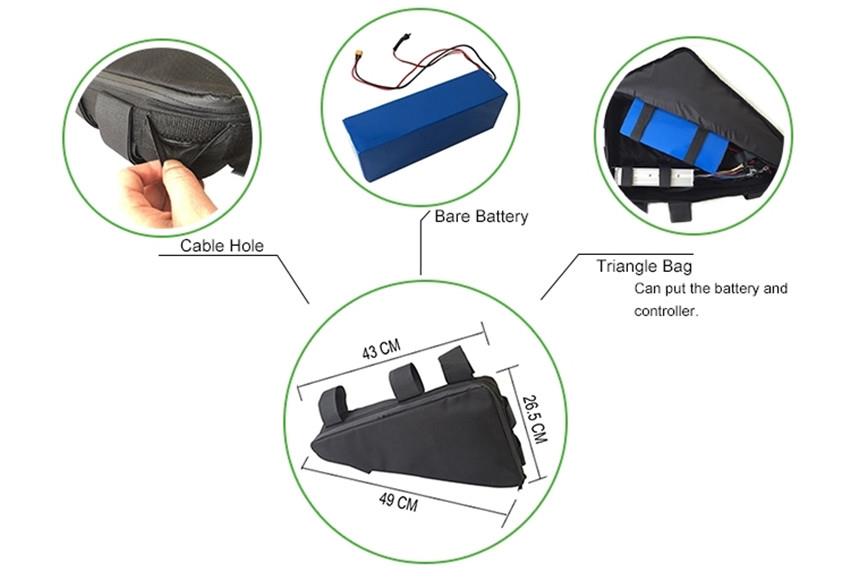

(10) Triangle Bag: Enough Space To Put Battery, Controller And Cables Inside.
