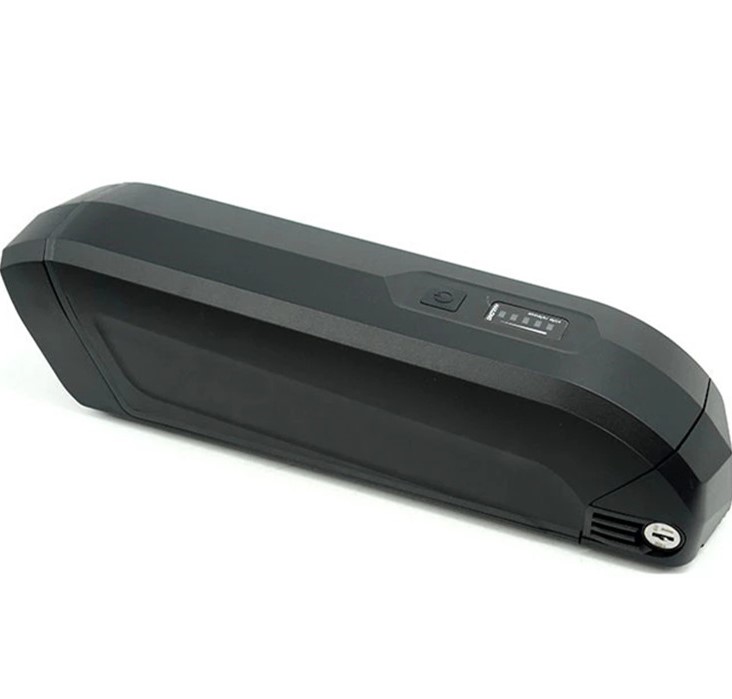

Li-ion Battery for electric bicycle 24V 10Ah
24V 10 ah HLB downtube electric bicycle Lithium ion Battery with controller integrated into the battery
Print this Page
Bookmark this
Inquiry product
E-mail Us24V HL Lithium battery | ||||
Battery Material | Lithium ion 18650 | Lithium ion 18650 | Lithium ion 18650 | Lithium ion 2900mah |
2000mah cell | 2200mah cell | 2600mah Samsung | NCR18650PF | |
Nominal Voltage | 24V | 24V | 24V | 24V |
Rated Capicaty | 10Ah | 11Ah | 13Ah | 14.5Ah |
Pack Dimension | L361*H90*W92mm | L361*H90*W92mm | L361*H90*W92mm | L361*H90*W92mm |
Internal Impedance | ≤100mΩ | ≤100mΩ | ≤100mΩ | ≤100mΩ |
Max Charge Voltage | 29.4V | 29.4V | 29.4V | 29.4V |
Max Charge Current | 3A | 3A | 3A | 4A |
Min Discharge Voltage | 20V | 20V | 20V | 20V |
Rated Discharge Current | 10A | 10A | 13A | 20A |
Max Discharge Current | 20A | 20A | 25A | 30A |
Charging Mode | CC/CV | CC/CV | CC/CV | CC/CV |
Pack Weight | About 2 .1kg | About 2 .1kg | About 2 .3kg | About 2 .3kg |
Over Current Protection | 25A±3A | 25A±3A | 30A±3A | 35A±3A |
Cycle Life | 800cycles | 800cycles | 1000cycles | 1000cycles |
Charge Temperature | 0-45℃ | 0-45℃ | 0-45℃ | 0-45℃ |
Discharge Temperature | -20-55℃ | -20-55℃ | -20-55℃ | -20-55℃ |
Certificates | CE | CE | CE | CE |
Motor Max | 250W | 250W | 500W | 500W |

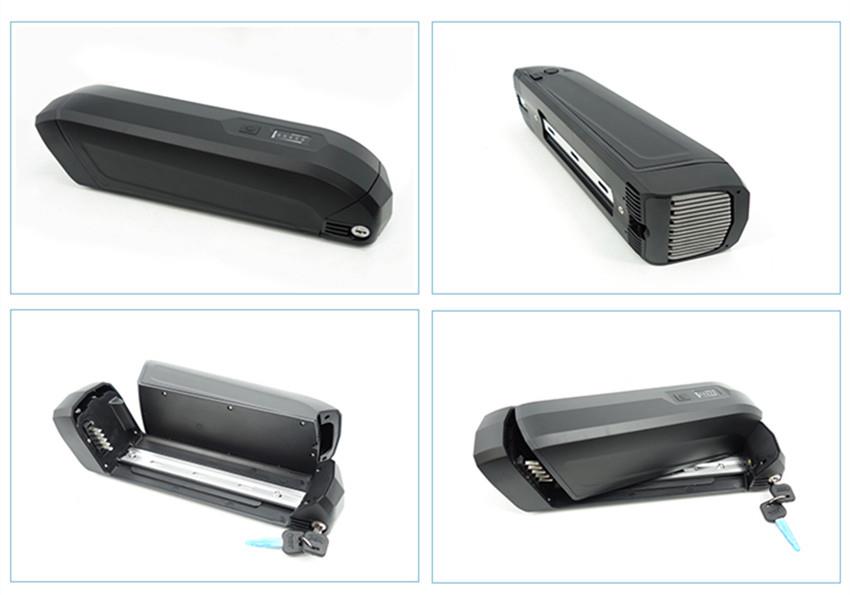

(1) New Hailong Case;
(2) Waterproof and Solid plastic Case;
(3) Lighted battery LED power Indicator;
(4) Convenient Charge Port;
(5) Lock with Keys securely locks the mount on bike frame.
(1) Environmental friendly;
(2) High density of energy;
(3) Light weight;
(4) Low self-discharge;
(5) Low internal resistance;
(6) Long cycle life, chargeable up to 1000 times;
(7) No memory effect;
(8) Doesn’t contain Mercury, No fire, No explosion, No leakage;
(9) BMS for battery over charge, over discharge, short circuit protection.
