Hailong Case Ebike Battery 48v 17.5ah
Most competitive price hailong case down tube ebike battery 48v 17.5ah with brand cell SAMS-MJ1 3500mAh 13S5P real capacity battery
Print this Page
Bookmark this
Inquiry product
E-mail UsMost Competitive Price Hailong Case Down Tube Ebike Battery 48v 17.5ah
Specification:
Norminal Voltage | 48v |
Nominal Capacity | 17.5ah |
Product name | Most competitive price hailong case down tube ebike battery 48v 17.5ah |
Features | Lithium ion battery cells 18650, aluminium case, large capacity 17.5ah LG cells MJ1-3500mAh, motor 1000w |
Dimenssion | 365 L* 150W*80H* mm |
Cycle life | more than 1000 times |
Customized capacity | 10ah, 12ah, 15ah, 17.5ah, 20ah, 25ah, 30ah. OEM/ODM case length and cost increase accordingly |
Source Resistance (mΩ) | < 40 |
Cell Specification | 3.7V ncr18650-3400mAh |
Cell Combination | 5-paralle, 13-series 13S5P |
Cell type | 18650 LITHIUM ION BATTERIE CELLS |
Cell Quantity (parallel*series) | 65 pcs cells LG MJ103500mah, 13s5p with bms 20Ah |
Charge Cutoff Voltage (V) | 54.6V |
Discharge Cutoff Voltage (V) | 41+/-1V |
Maximum Continuous Charge Current (A) | 5A |
Instantaneous Maximum Discharge Current (A) | 40Ah |
Maximum Continuous Discharge Current (A) | 20Ah |
Standard Charge Current (A) | 0.2C 2A, FAST CHARGER 3A/4A |
Charge Time under Standard Charge Current | 5-6 HRS |
Battery Net Weight | 5.5 KGS |
Battery Gross Weight | 7.0 kgs with charger if need tobuy . |
Applications | Widely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc. |
Poduct Feature And Characteristics Of Our Rear -Frame Type Electric Bike Battery :
Battery size : 367.2*111*90.1 mmm (L *H*W)
Hailong ebike battery 48v17.5ah lithium ncr18650b electric bicycle battery
1)) Powerful energy :as the high voltage and light weight ,Motors acceleration speed performance are very good
2)) Energy density per volume are higher : 750W - 1000W MOTOR VEHICLE
3) Wter-proof plastic ABS cover case, IP64 level
4) Stable BMS system with short-circuit protection ,over-charge protection ,over-discharge protection and over-current protection fuctions .
10 ) With at least More than 1000times cycle life
11) It can run well under different temperature environment conditions
12) No memory effects.
13) Light weight

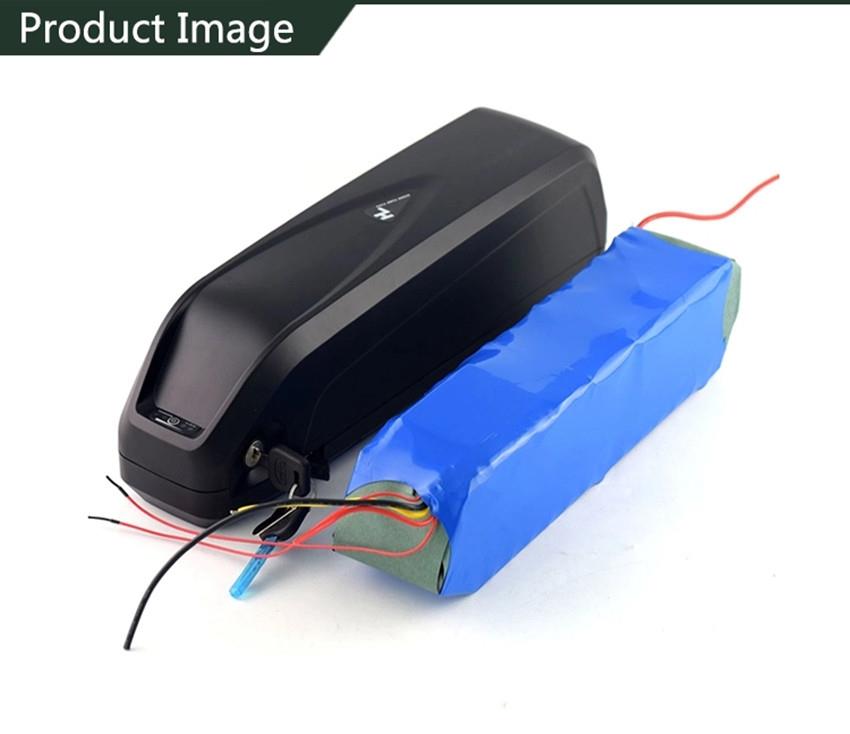

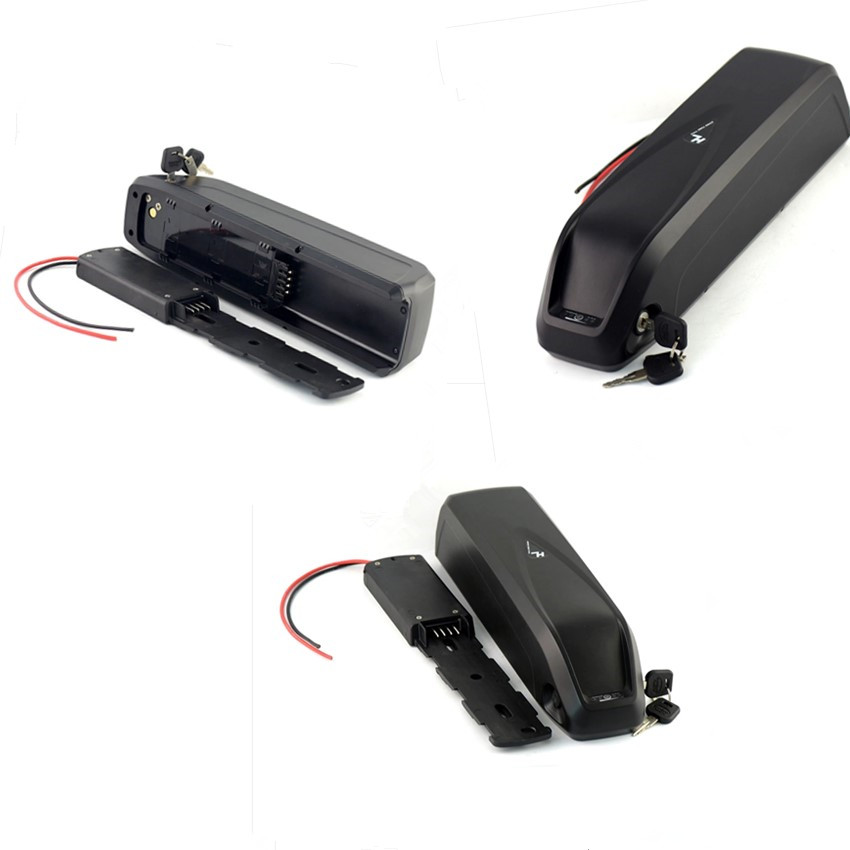

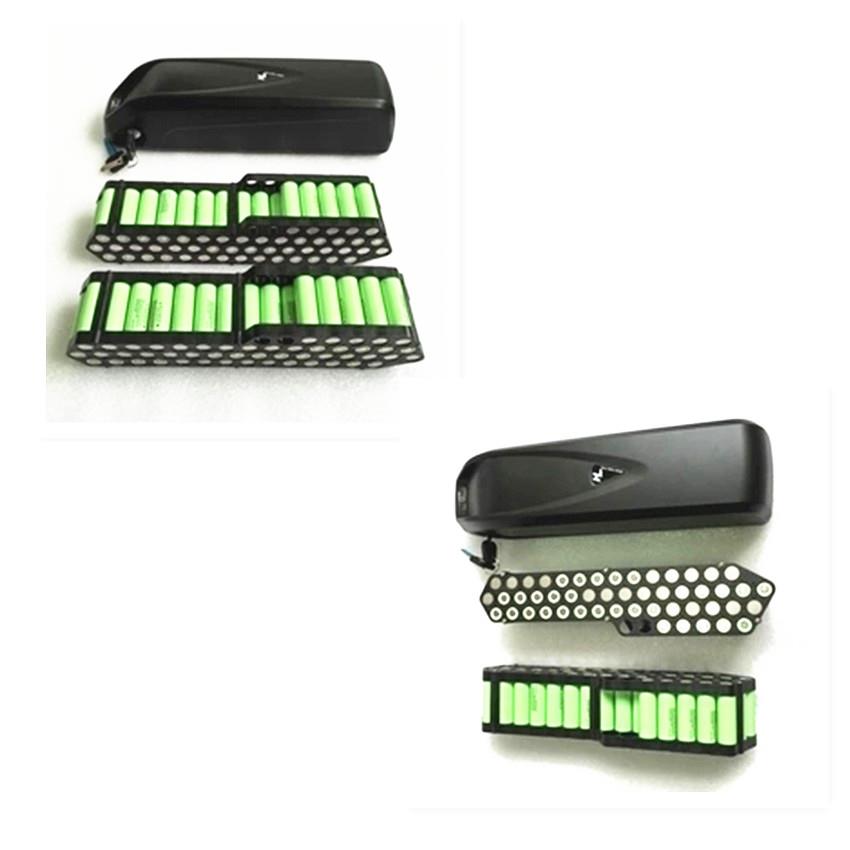

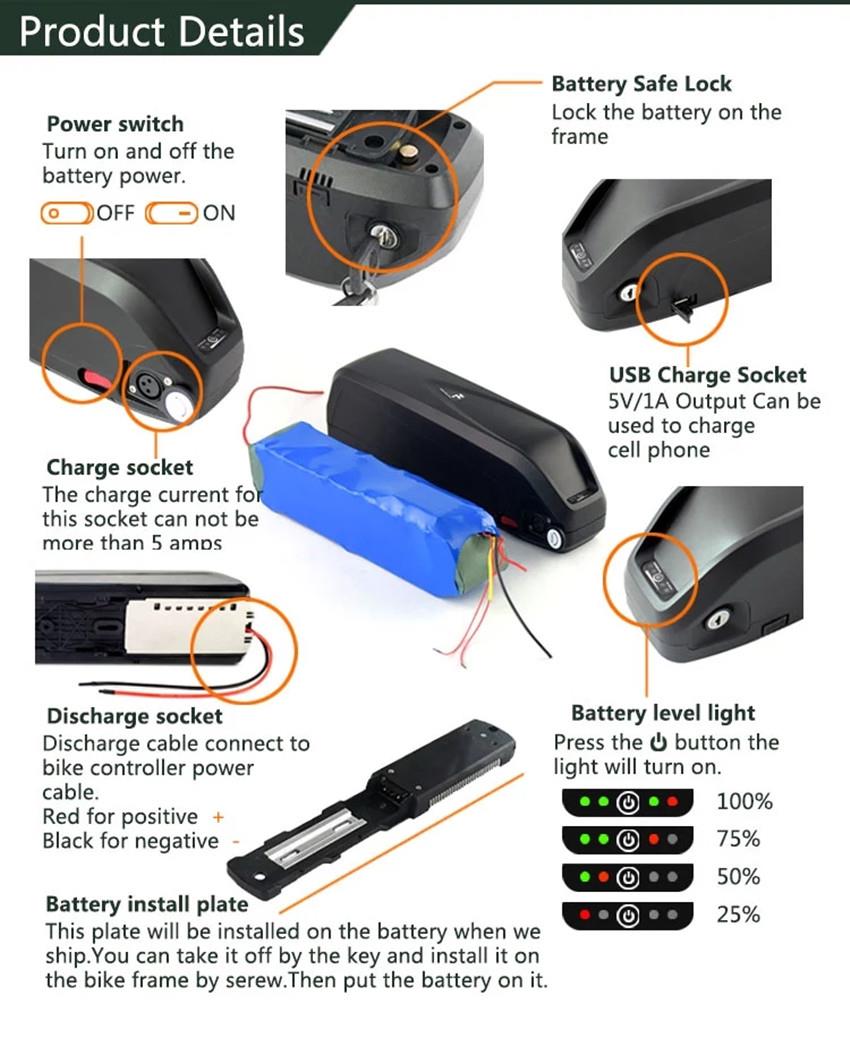

Product Views Photoes:
