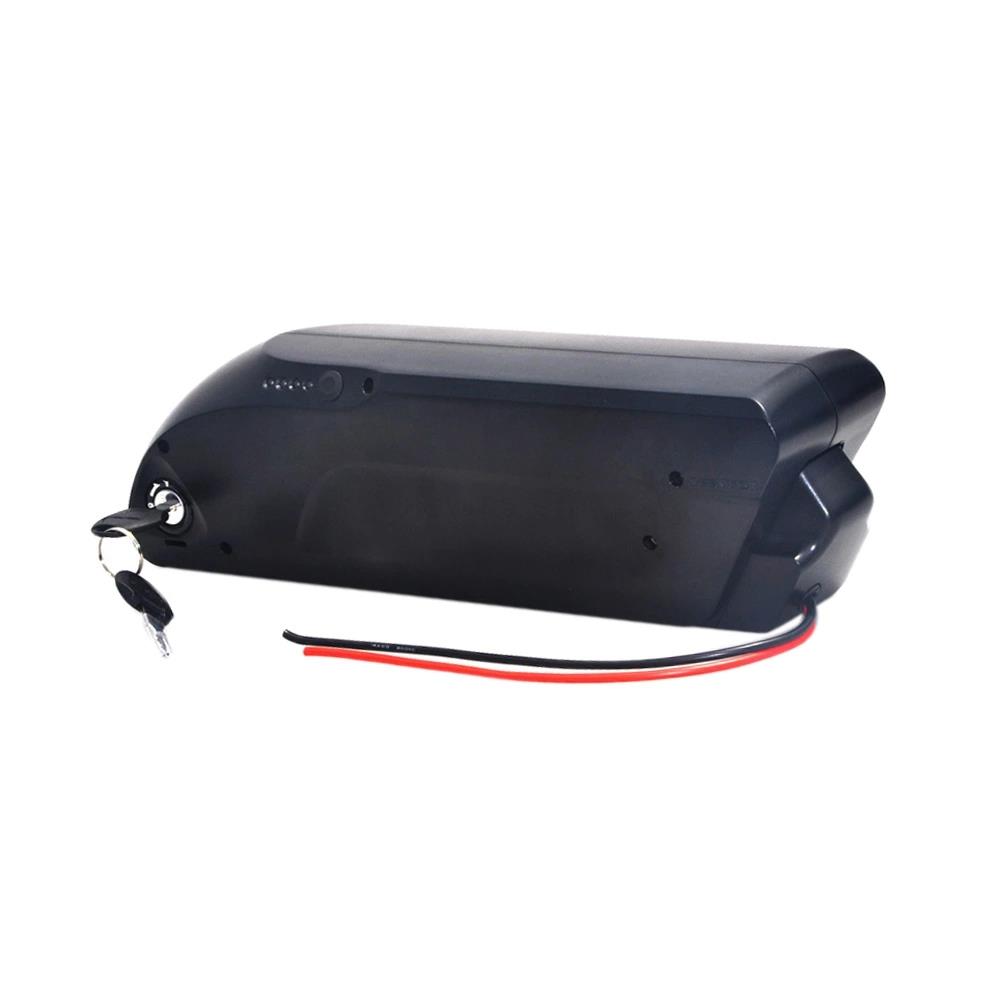

15AH Tiger Shark Down Tube Li-ion Battery

Nominal Voltage

36V

Nominal Capacity

15±1Ah( at 0.2C discharge rate)

Discharge

normal current

1C

Max continuous current

2C (≤5min)

cut-off voltage

30V

Charge

normal charge current

0.5C

Charge mode

CC/CV with professional charger

cut-off voltage

42±0.1V

Inner Resistance

Discharging Inner resistance

≤60mΩ

Charge Temperature

0℃~+45℃

When the environment temperature is higher than 45℃,please pay attention to ventilation and heat rejection.

Discharge Temperature

-20℃~+60℃

Humidity Range

RH≤85%

Protection Function

Over charge protection,Over discharge protection,Over current protection,Balanced function

Shell Material

Plastic case

Weight

3.5±0.1kg

Dimension(L*W*H)

(110±1)mm *(110±1)mm *(380±1)mm

Cycle Life

Standard charge at 0.2C(A), rest 0.5~1 h,discharge at 0.2C to cut off voltage,rest 0.5~1h,repeat the above steps until 500 cycles.( capacity retention rate≥80%)
