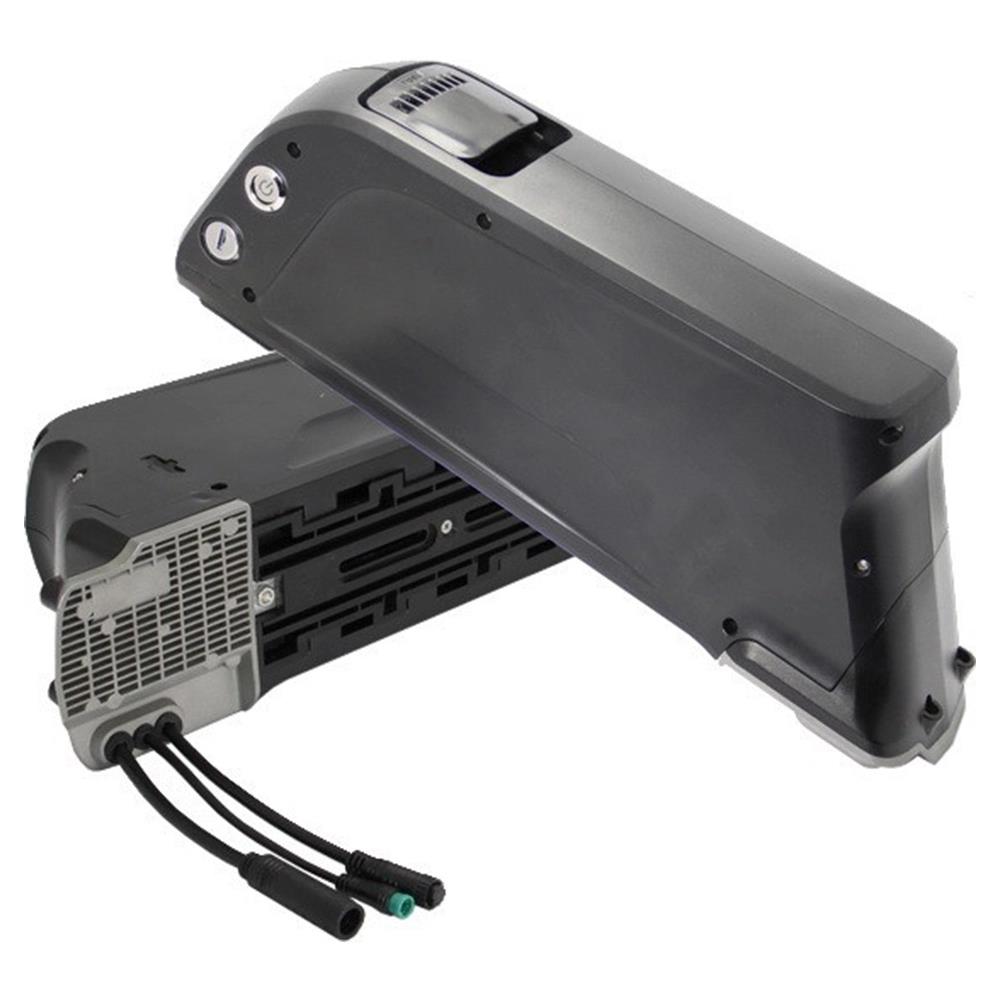

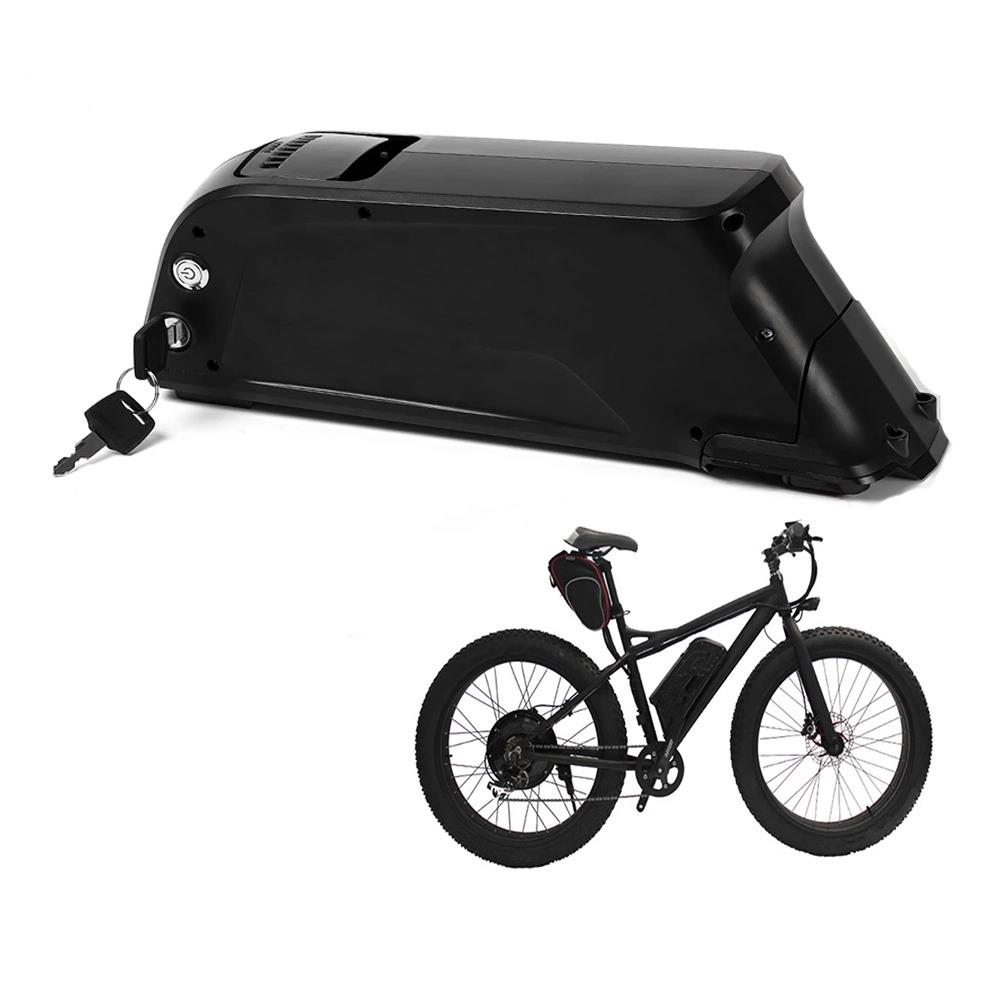

Li-ion 48V 11.6Ah Electric Bicycle Battery Pack With USB

Nominal Voltage

48V

Nominal Capacity

11.6AH( At 0.2C Discharge Rate)

Discharge

Normal Current

1C

Max Continuous Current

2C (≤5min)

Cut-Off Voltage

35.75V

Charge

Normal Charge Current

0.5C

Charge Mode

CC/CV With Professional Charger

Cut-Off Voltage

54.6±0.1V

Inner Resistance

Discharging Inner Resistance

≤40mΩ

Charge Temperature

0℃~+45℃

When The Environment Temperature Is Higher Than 45℃,Please Pay Attention To Ventilation And Heat Rejection.

Discharge Temperature

-20℃~+60℃

Humidity Range

RH≤85%

Protection Function

Over Charge Protection,Over Discharge Protection,Over Current Protection,Balanced Function

Shell Material

Aluminium Case

Weight

4.5±0.1kg

Dimension(L*W*H)

(80±1)Mm *(120±1)Mm *(340±1)Mm

Cycle Life

Standard Charge At 0.2C(A), Rest 0.5~1 H,Discharge At 0.2C To Cut Off Voltage,Rest 0.5~1h,Repeat The Above Steps Until 2000 Cycles.( Capacity Retention Rate≥80%)
