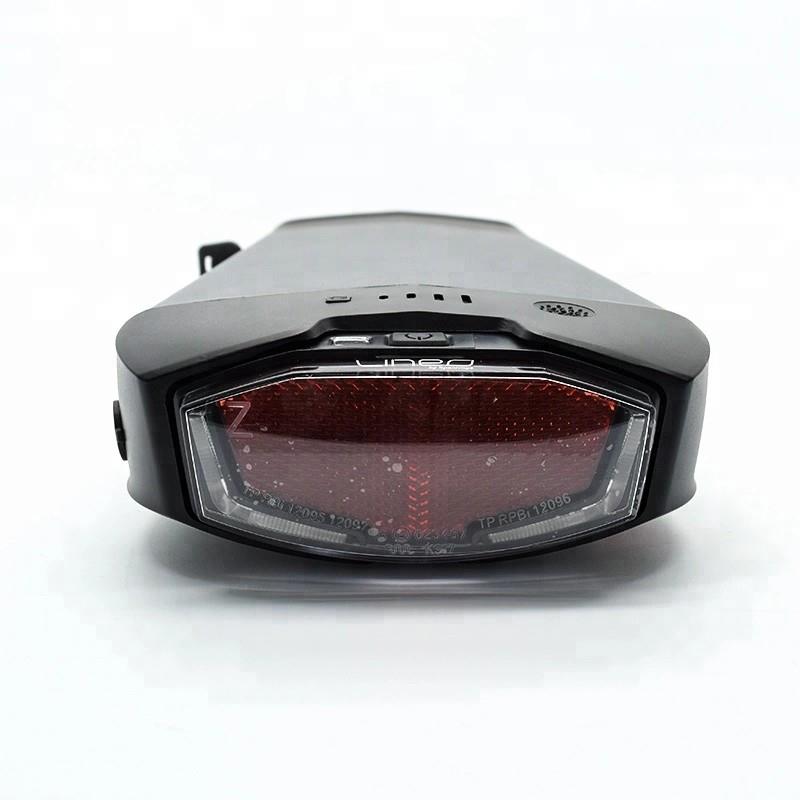

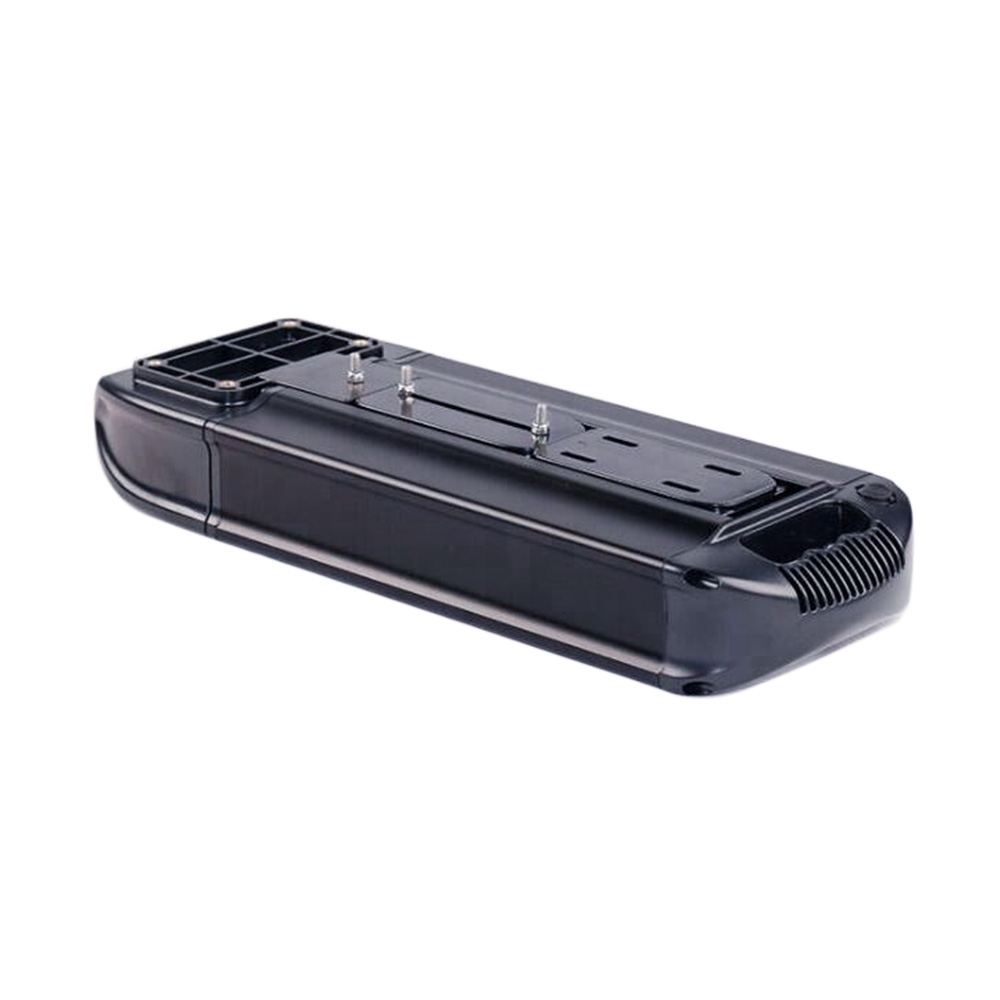

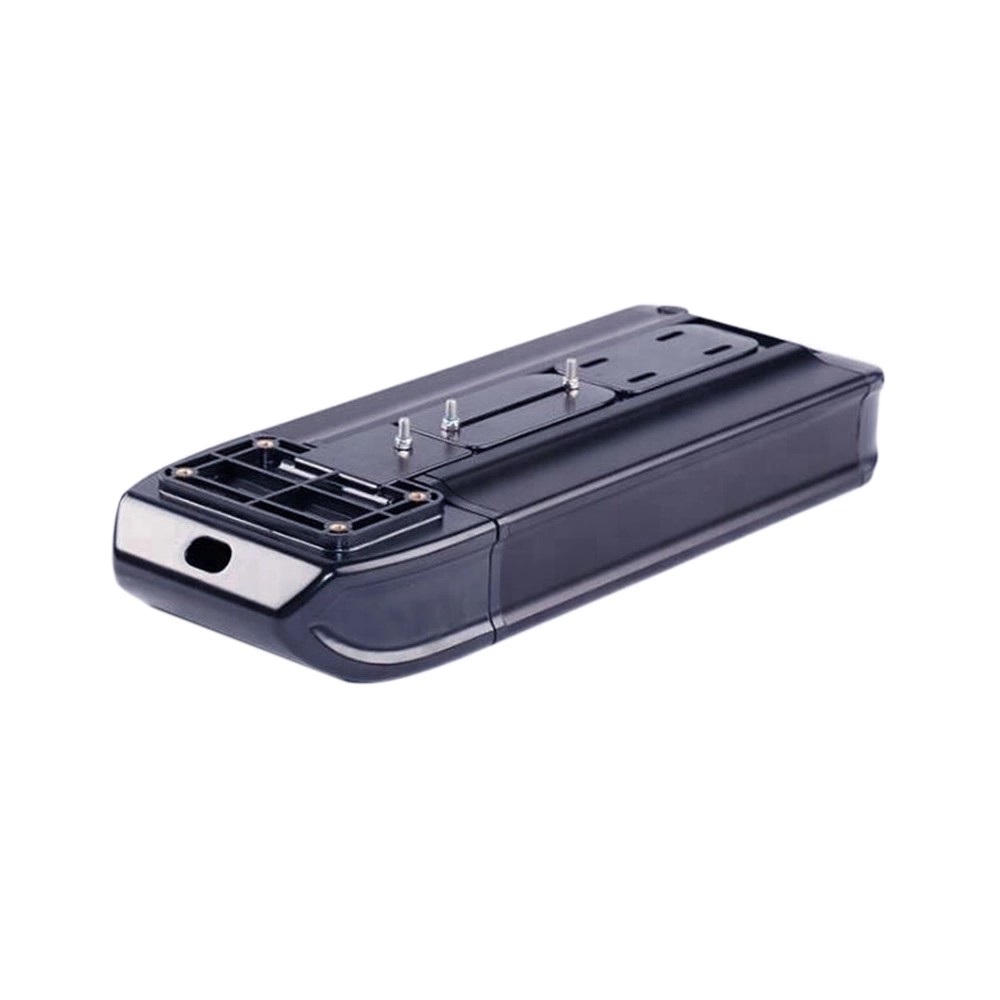

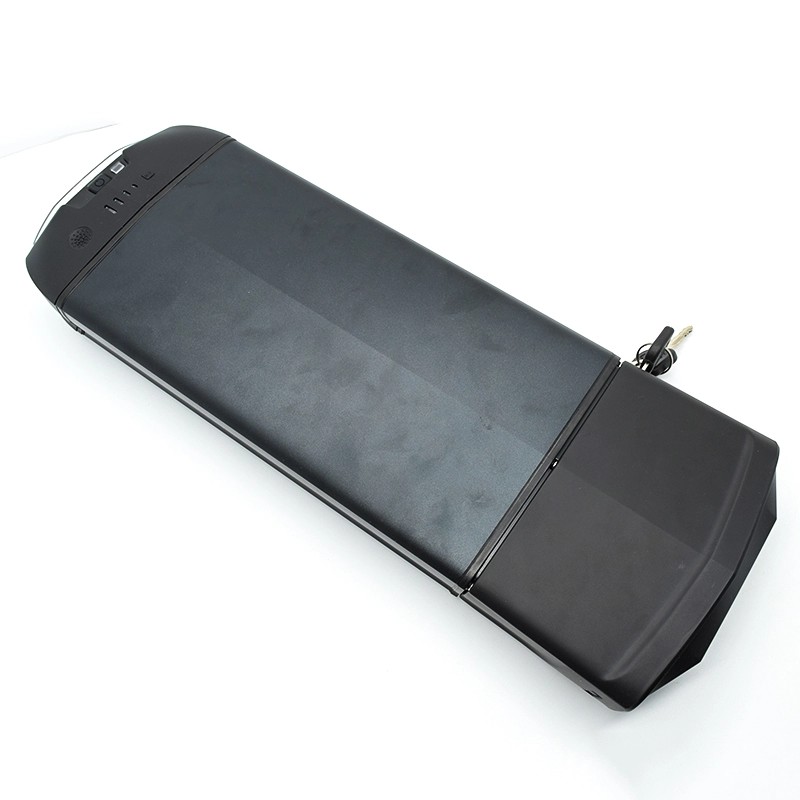

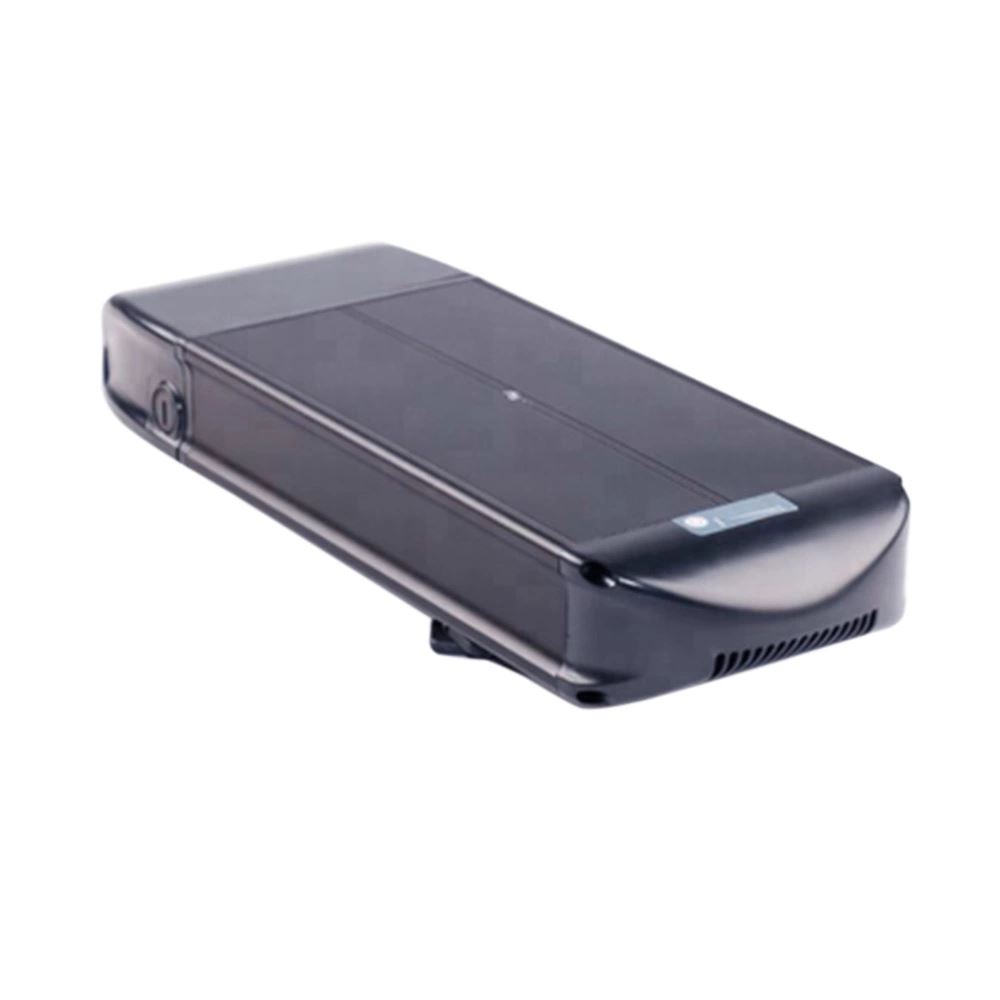

36v 10Ah Li-ion Dolphin Case 350w Electric Bicycle Battery Pack

Item Parameters:

Nominal Voltage 36V

Nominal Capacity 10Ah( at 0.2C discharge rate)

Discharge normal current : 1C

Max continuous current 2C (≤5min)

cut-off voltage 30V

Charge normal charge current 0.5C

Charge mode CC/CV with professional charger

cut-off voltage 42.5±0.1V

Inner Resistance

Discharging Inner resistance : ≤60mΩ

Charge Temperature 0℃~+45℃ When the environment temperature is higher than 45℃,please pay attention to ventilation and heat rejection.

Discharge Temperature -20℃~+60℃

Humidity Range RH≤85%

Protection Function Over charge protection,Over discharge protection,Over current protection,Balanced function

Shell Material Plastic case

Weight 2.8±0.1kg

Dimension(φ*H)

68*156*432mm

Cycle Life Standard charge at 0.2C(A), rest 0.5~1 h,discharge at 0.2C to cut off voltage,rest 0.5~1h,repeat the above steps until 50
