48V 52V 20Ah Triangle Battery For Electric Scooter Bike
Ebike Battery 48V 52V 20Ah Triangle Electric Bicycle Battery for Bafang BBS02 BBSHD 750W 1000W Motor
Print this Page
Bookmark this
Inquiry product
E-mail UsBattery Feature:

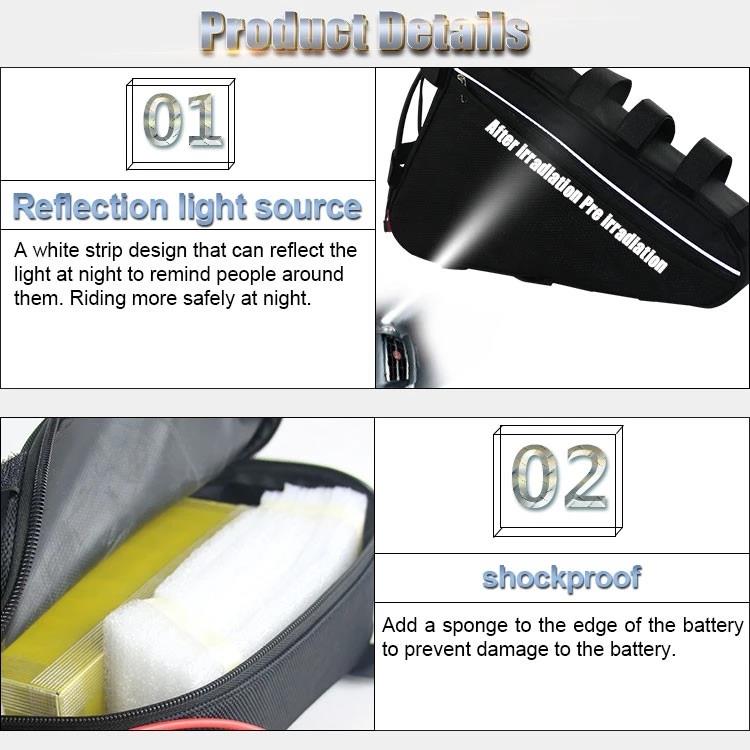

1. Fashion triangle waterproof battery Bag.
2. With traffic safety reflective lines on two sides keep safe riding in night.
3. Improved stonger convenient install band.
4. Higher current Charge Port.
5. BMS constant current can be customized.
Battery Parameters
Battery type | Li ion Battery |
Rated Voltage | 48V |
Rated Capacity | 20Ah |
Battery cell | 18650 Chinese A grade 2500mAh cells |

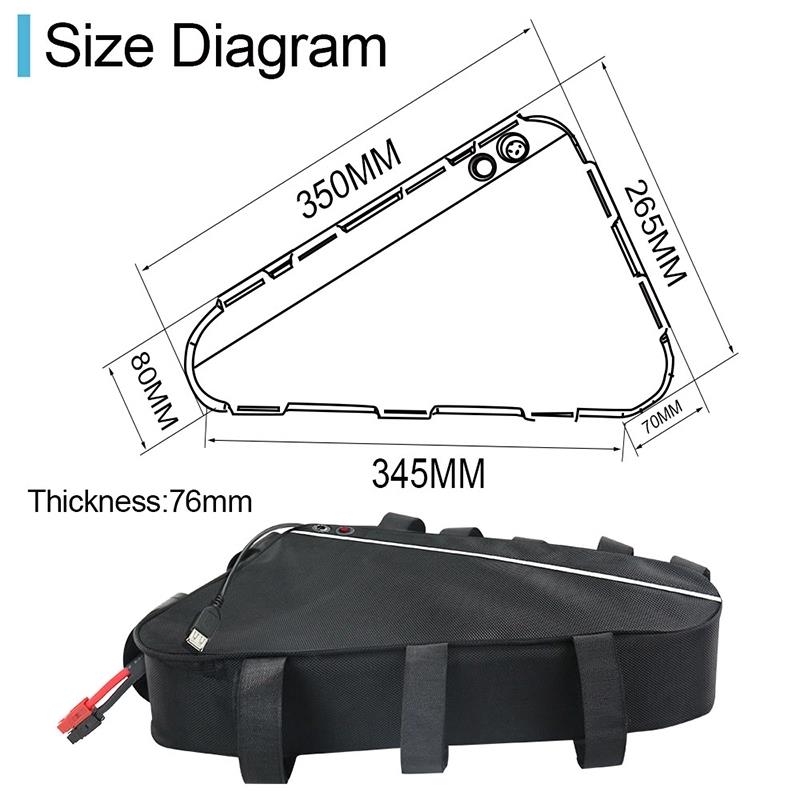

Dimension(mm) | 350*265*70*345*80 |
Battery weight | 5.7KG |
BMS current | 30A fit for 1000w motor |
Max.charge current | 5A |
Charge voltage | 54.6v |
Discharge cut-off voltage | 36.4v |
Charger | 2A,3A,5A, |

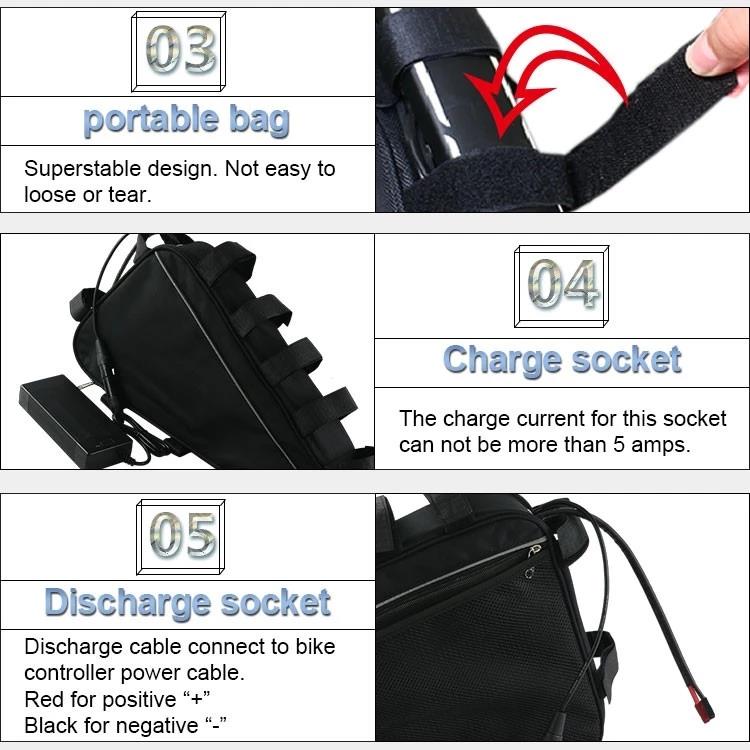

Charge Plug and Discharge Connector
1.Charge Plug:
Due to the battery only ship to Europe area,so will provide default EU plug.
2. Discharge Connector:
For battery bulit-in 30A BMS, the discharge cable is soldered with default No.7 connector.

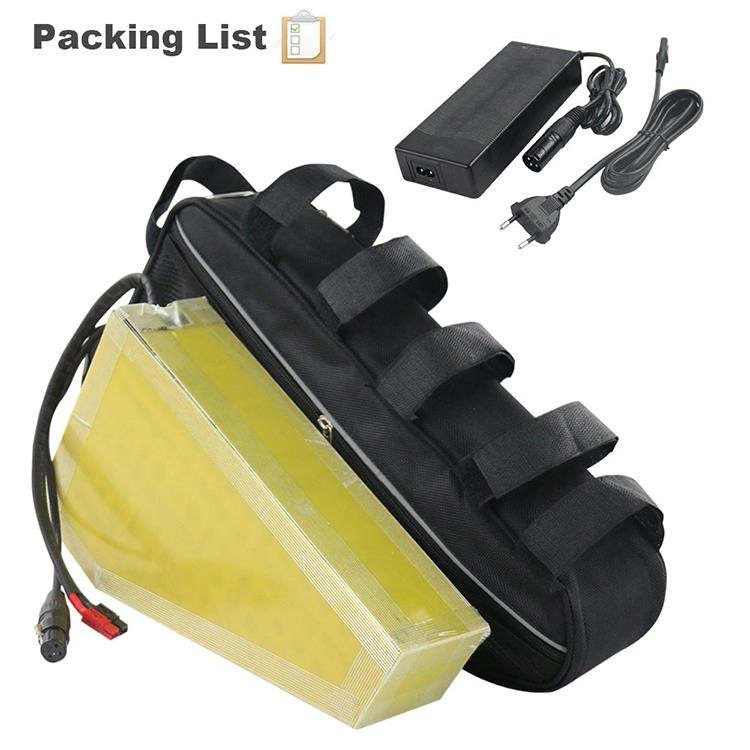

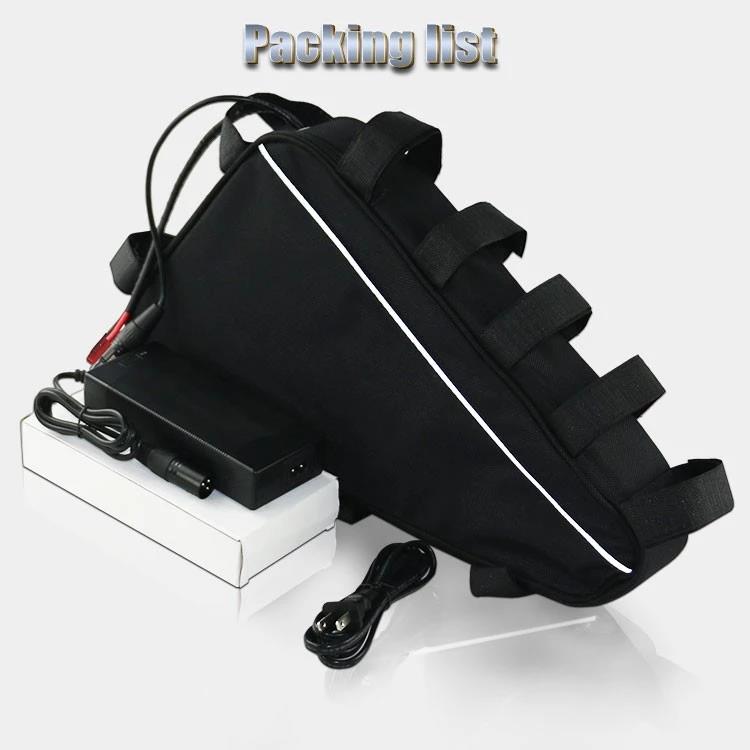

1. Packing list included:
- Lithium Battery Built-in cells and 30A BMS * 1 pc
- 54.6V 3A Charger With AC EU standard plug * 1 pc
- Specification and qualified certificate * 1 set
