22.2V 16AH Battery for Ground Penetrating Radar

Product Parameters:

Model No.18650-6S8P/16Ah/22.2V.

PCBA Specification:

Over charge voltage: 4.35±0.25V

Over charge release: 4.15±0.50V

Over discharge voltage: 2.70±0.08V

Over discharge release 3.00±0.10V

Over current protection (10ms): 30~35A

Charge balance current: 300±50mA

Charge balance voltage: 4.20±25mV

High temperature protection (can be release): 70±5℃

Battery cycle life: 500~1000 times

Technical Specification

PCM: This battery pack applied special designed protection circuit：

Over charge, Over discharge, Short circuit and over current protection.Prevent battery from fire and explosion.

Protection IC: The protection IC with real time detection function: over charge, such as over discharge, over current and short circuit protection. It ensured battery security and stability.

MOSFET: MOSFET is the auto switch, which keeps the voltage in a stable range.

Cell type: 18650/2000mAh/3.7V cell

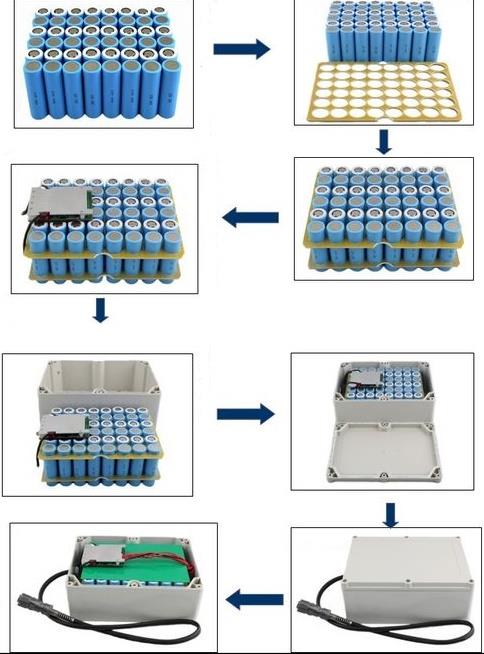

Assemble & internal structure of Battery

Advantage

1. 100% new and original LG or SANYO/Panasonic cells. All cells are class A.

2. Our battery is factory price, original quality.

3. Fast delivery. We are factory, so we can ship the goods as soon as we finish the test.

4. With short-circuit production function, the battery is safe and reliable.

5. The cells of each battery pack match team strictly, and all packs has been tested by OQC to macth OEM products.

6. One year warranty for all of our products.
