Lithium 12v 400ah Battery For 5000w Small Home Use Wind Turbine
lithium 12v 400ah battery for 5000w small home use wind turbine
Print this Page
Bookmark this
Inquiry product
E-mail UsVoltage (nominal, V) | 12V, 12.8V |
Nominal Capacity | 400 Ah |
Organization way | 4S4P , 3.2V 100AH prismatic lifepo4 cells with bms |
Standard Charge Current | 20A (0.2C rate) |
Max. Charge Current | 50 A (0.2C rate) |
Working voltage | 14.6v |
Standard discharging current BMS | 100ah |
Charge Cut-off Voltage | 14.8V |
Discharge Cut-off Voltage | 10V |
Inner Resistance(Impedance) | 420 mΩ (At 0.2C rate, 2.0V cut-off) |
Battery cell type | Quality lithium ion lifepo4 battery 12v 100ah |
Shipping | DHL, UPS, FEDEX or Sea Shipping or Special line |
Weight | net weight 48.0 KGS, package with pallet 57KGS |
Dimensions: | Length: 450 mm |
Width: 375 mm | |
Thickness: 185mm | |
Operating Temperature | Charging:0°C ~ 55°C, Discharging: -22°C ~ 55 °C |
Storage Temperature | Storage Temperature -20°C ~ 60°C |
Cycle Life at 0.2C Discharge, 100% DOD | ≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard) |
12V400Ah Prismatic Battery Features:
1. battery pack specifictaion : 12v 400ah

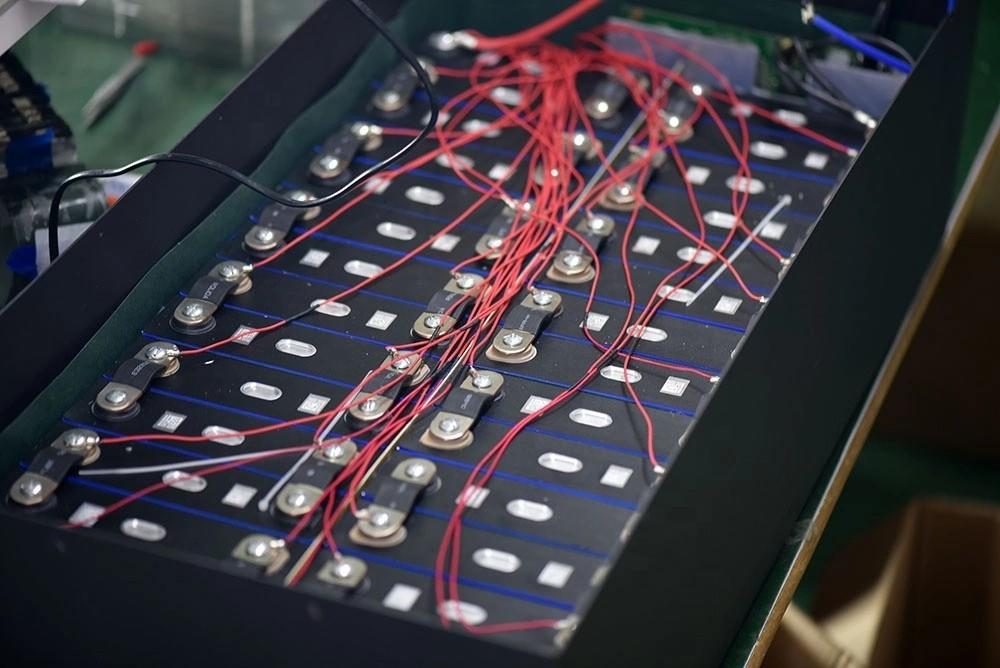

2. battery cell type use: lithium iron phosphate battery lifepo4 3.2v 100ah prismatic real capacity cell in 4S4P (16PCS)
3. battery pack cycles: 2000 times long deep cycle lifepo4 pack 12v 400ah
4. battery pack BMS : 4S 100A
5. Max fast charge current: 14.6v 50Ah
6. Battery pack box size: 450*375*185mm
Battery Cell Type: Lithium Lifepo4 3.2v 100ah Prismatic Cell , 48*173*133mm /100A 48172133 Passed CE, MSDS
Applications:
lithium 12v 400ah battery for 5000w small home use wind turbine
LED light system;
Solar battery / solar panel battery
-Portable VTR/TV, tape recorders, radios, etc.
-Power tools, lawn mowers and vacuum cleaners
-Cameras and photographic equipment
-Portable measuring equipment
-Various power toys and recreational equipment
-Uninterruptible Power Supply
-Communications and electric equipment
-Emergency lighting equipment
