Powerwall 24 Volt Lifepo4 Battery 24v 100amp Storage Batteries
powerwall 24 volt lifepo4 battery 24v 100amp storage batteries
Print this Page
Bookmark this
Inquiry product
E-mail Us24v 100ah Lifepo4 Batteries Specification:
Powerwall 24 Volt Lifepo4 Battery 24v 100amp Storage Batteries
Model | 24100LIFEPO4 |
Nominal Voltage | 24V |
Nominal Capacity | 100 |
Internal Resistance | <420mΩ |
End of charge Voltage | 29.2V |
End of charge Current | 100mA |
End of discharge Voltage | 18.4V |
Charge Method | 0.2C(0.5A)CC/CV |
Max. Coutinuous charge current | 100A |
Nominal discharge current | 100A |
Max. Pluse Discharge Current | 200A |
Dimension | 365*185*245MM(customized) |
Weight | around 35kg |
Storage Temp. (60~80% SOC Storage ) | -10 ~45‘C |
Capacity@1C rate 0.2C | ≥100AH |
Cycle Life | 1500 times (Cycle @RT 1C rate, 85% D\OD) |
Operating Temp | Charge: 0 ~45'C |
Discharge: -10 ~55‘C |
Applications Of 24v 100ah Lifepo4 Batteries Pack:
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)
Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
Features of 24v 100ah Lifepo4 batteries pack:
* Long service life.
* Low self-discharge.
* Environment friendly.
* Good safety performance.
* Maintenance-free operation.
*Broad operating temperature range.

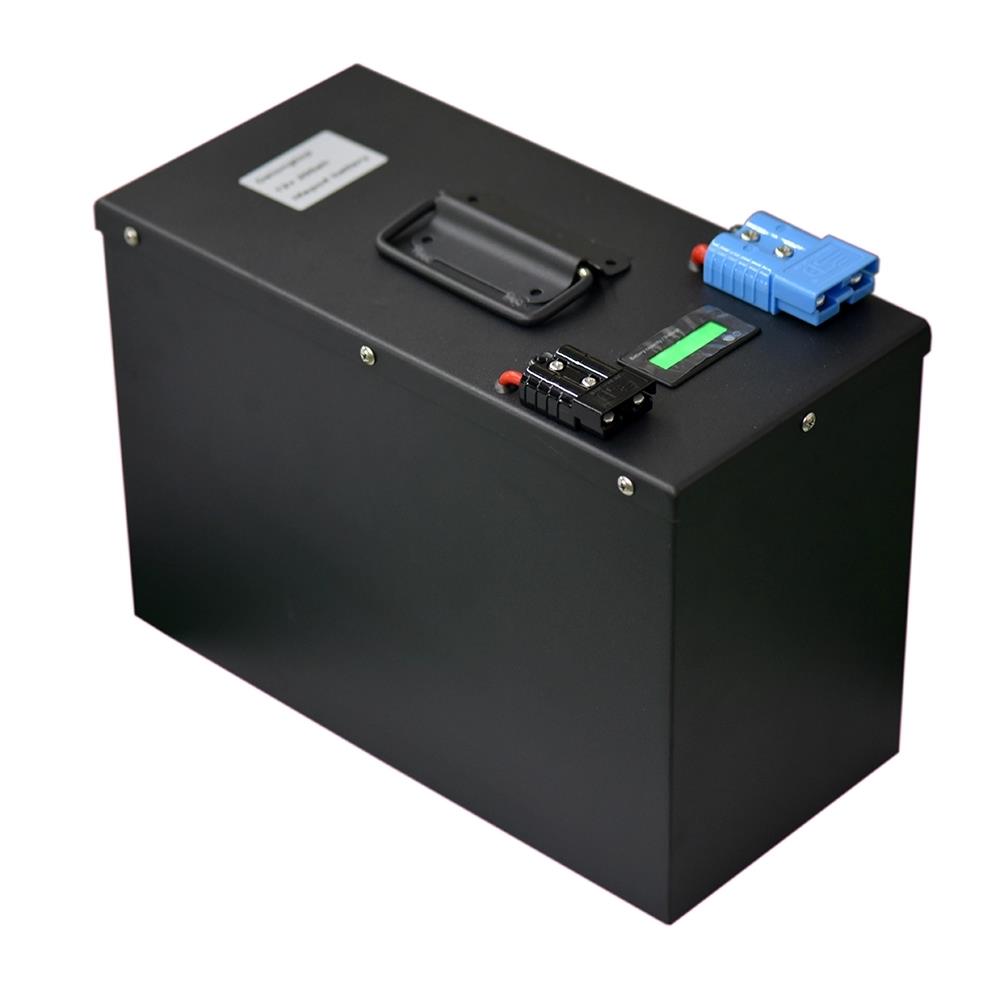

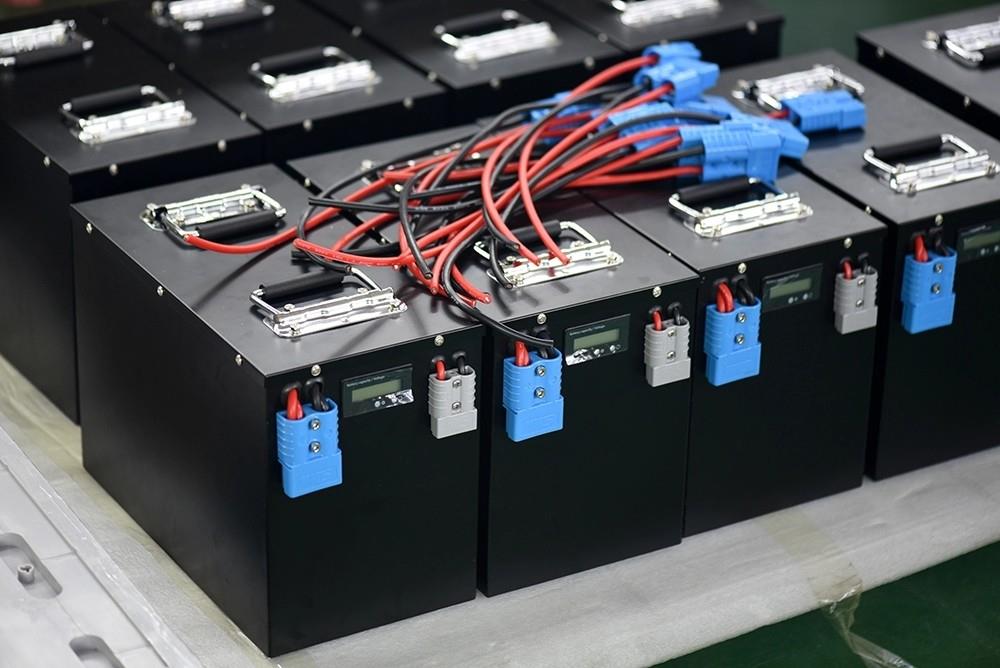

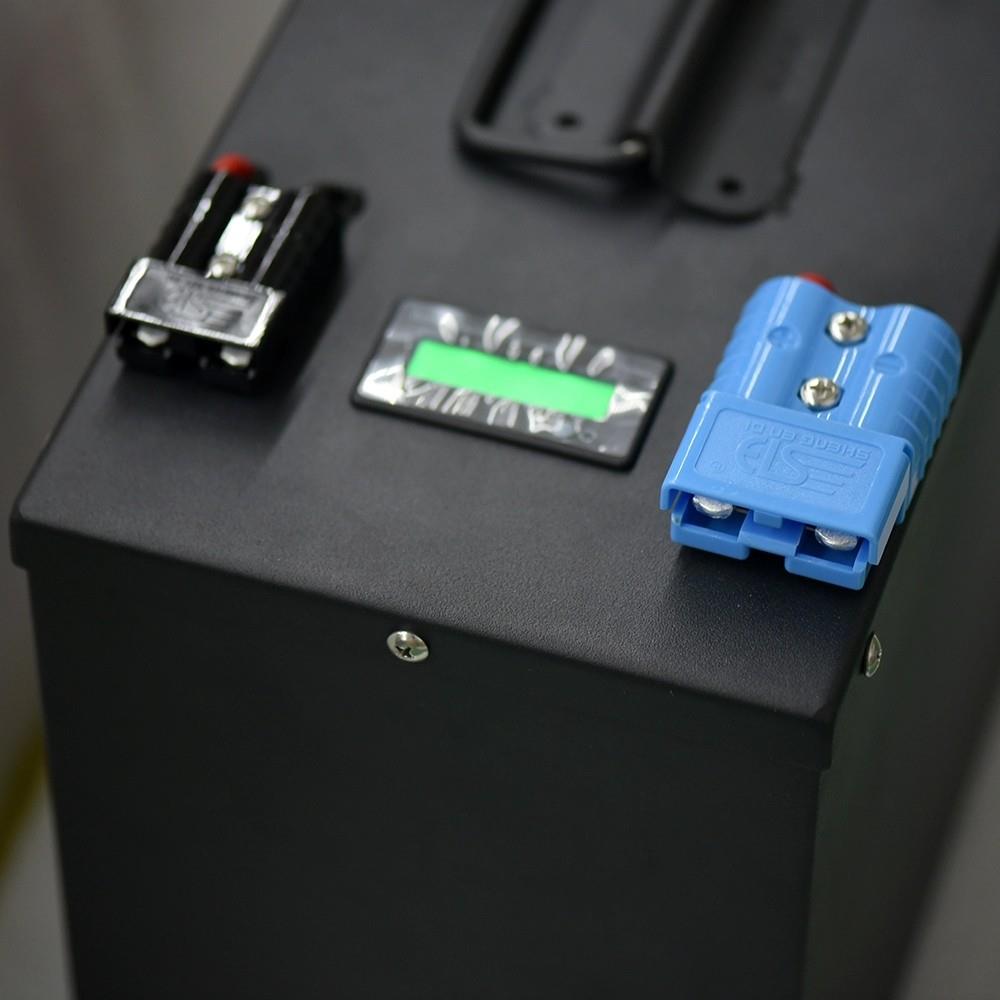

Photos of 24v 100ah Lifepo4 batteries pack:
use 3.2V25Ah pouch lifepo4 cell 4S8P composition,with 4S 100A BMS

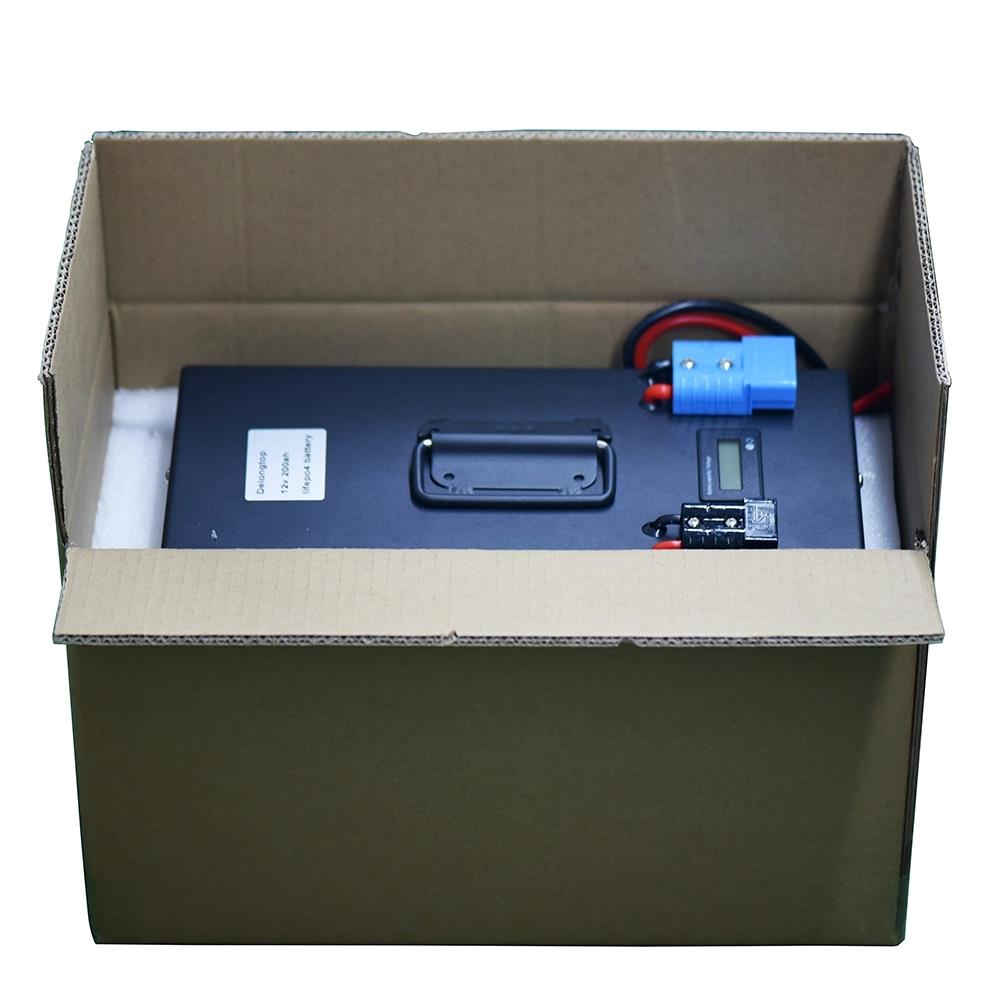

Packaging Method: Standard Export Package
