Deep Cycle 2500 Times Lithium Lifepo4 Battery 24V 50Ah 8S8P With 32700 Cells
Deep cycle 2500 times Lithium lifepo4 battery 24V 50Ah 8S8P with 32700 cells
Print this Page
Bookmark this
Inquiry product
E-mail UsProduction Name:
Deep Cycle 2500 Times Lithium Lifepo4 Battery 24V 50Ah 8S8P With 32700 Cells
( Battery cell Type certificated CE/MSDS/IEC62133 )
Lifpo4 battery cell type Cylinderical 32700 lifepo4 cell 3.2v 6000mAh:
32*70mm 145.0 gram/pcs
Product Specification
Deep cycle 2500 times Lithium lifepo4 battery 24V 50Ah 8S8P with 32700 cells
Nominal voltage | 24V 50Ah lifepo4 battery :330*171*220mm |
Charge voltage | 29.2V |
Nominal capacity | 50Ah |
Battery cell | Cylinderical lifepo4 32700 LifePO4 cell 3.2V 6000mAh |
Battery configation | 8S7P |
Internal resistance | ≤220mΩ |
End of charge voltage | 29.2V |
End of charge current | 100mA |
End of discharge voltage | 20V |
Charge method | CC/CV |
Max continuous charge current | 50A |
Max continuous discharge current | 50A |
Max pulse discharge current | 100A/10S |
Weight | 11.0KG |
Case material | metal casing |
Case dimension | 255*165*220mm |
BMS protection | 8S-50A , over-charge,over-discharge,over-current,short circuit |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Storage temperature | -10~45℃ |
Lifecycle | 2500 times at 85% dod, 6000 times at 65% dod |
Warranty | 5 years |
Advantages Of
Deep Cycle 2500 Times Lithium Lifepo4 Battery 24V 50Ah 8S8P With 32700 Cells
1) Environmental friendly.
2) High temperature performance,the maximum working temperature can be 70℃
3) High capacity.
4) Fast charging.
5) Safety in use.
6) Long cycle life, chargeable up to 2500 times at 85% dod.
7) No memory effect.
8) Doesn’t contain Mercury, No fire, No explosion, No leakage.
9) High temperature resistance.
10) Stable discharge platform , it is can support large current and high power to charging and discharging.
11)With Anderson connector for charge and discharge port

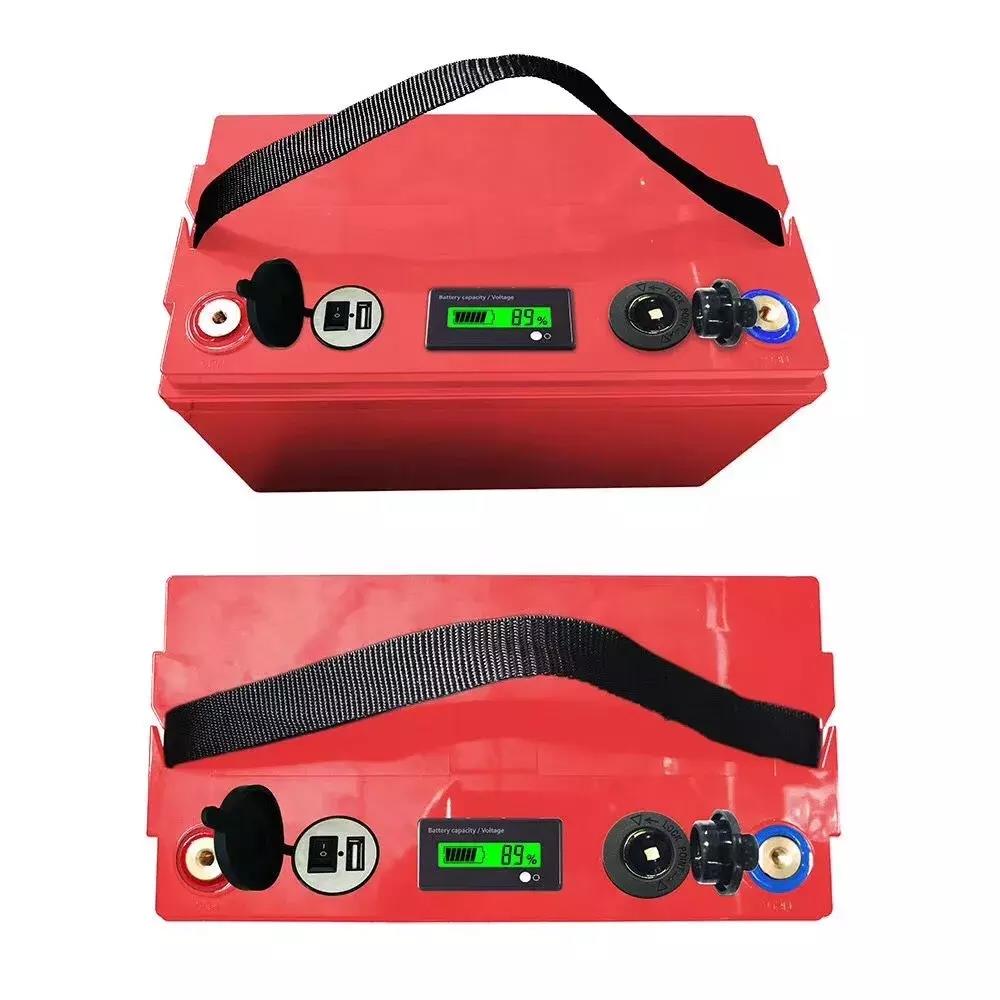

12)With display screen which can show the voltage and remaining power
Lifpo4 Battery Cell Type :
Cylinderical lifepo4 32700 cell lifepo4 battery :
3.2V 60000mAh cell . , IEC62133. MSDS. CE PASSED.
Product Features
1, High energy density
2, High working voltage for single battery cells
3, Pollution-free
4, Long cycle life 2000 times
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Factory price & High quality
9, Good consistency, low self discharge
