5KW Solar Panel Inverter 48v Dc LiFepo4 Battery Pack 48V 100AH
5KW solar panel inverter 48v dc LiFepo4 battery pack 48V 100AH
Print this Page
Bookmark this
Inquiry product
E-mail UsProduction Name:

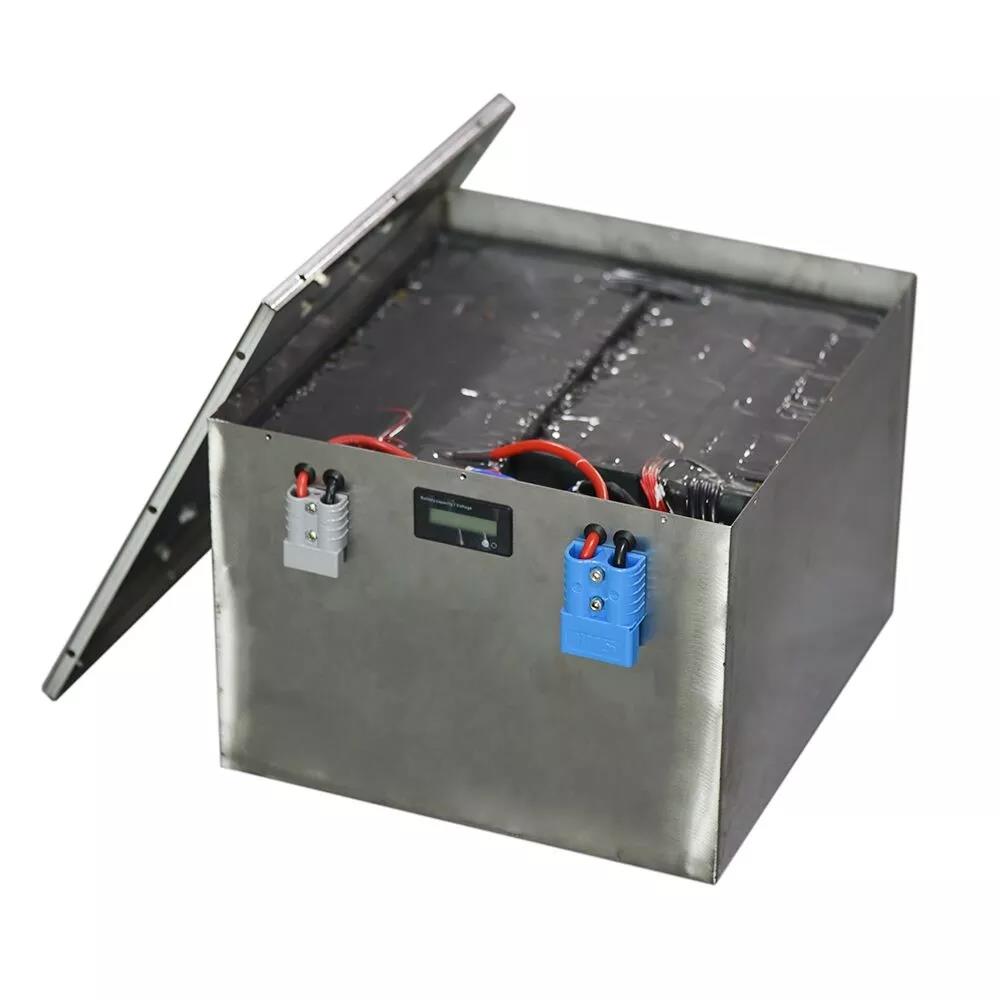

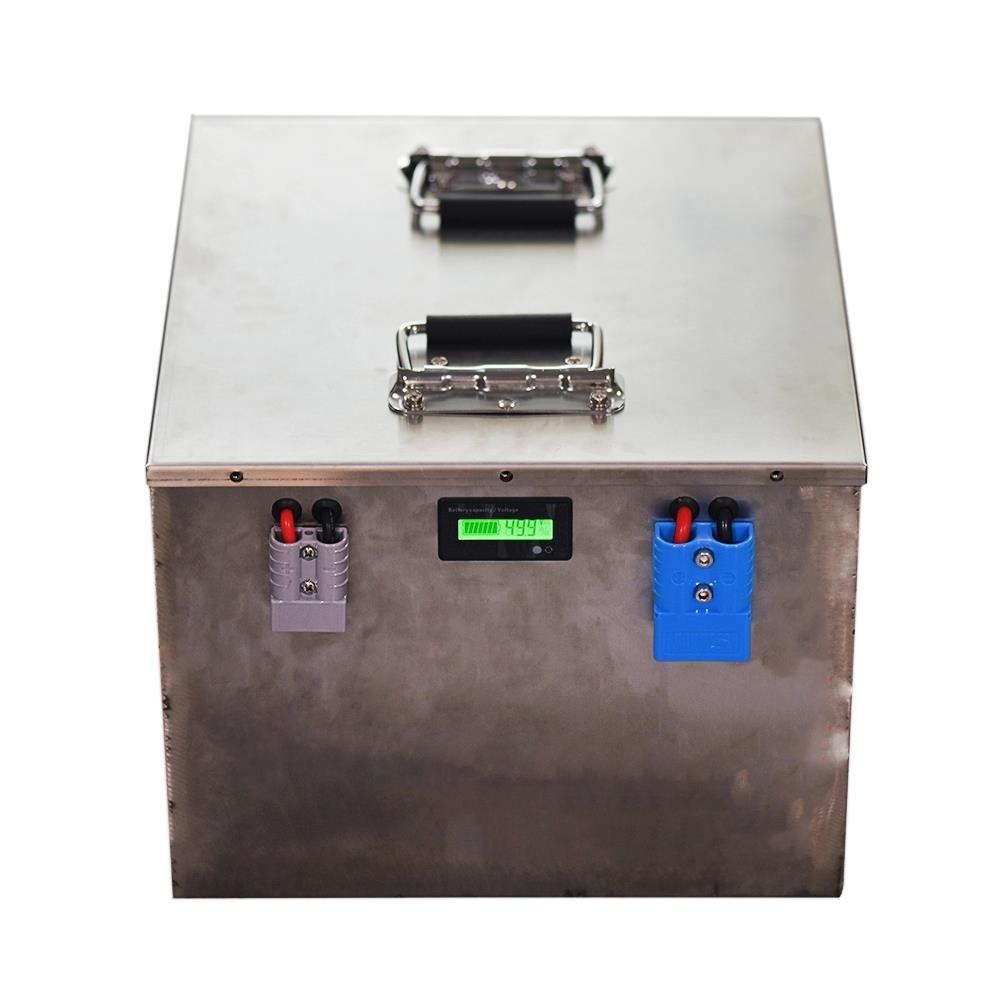

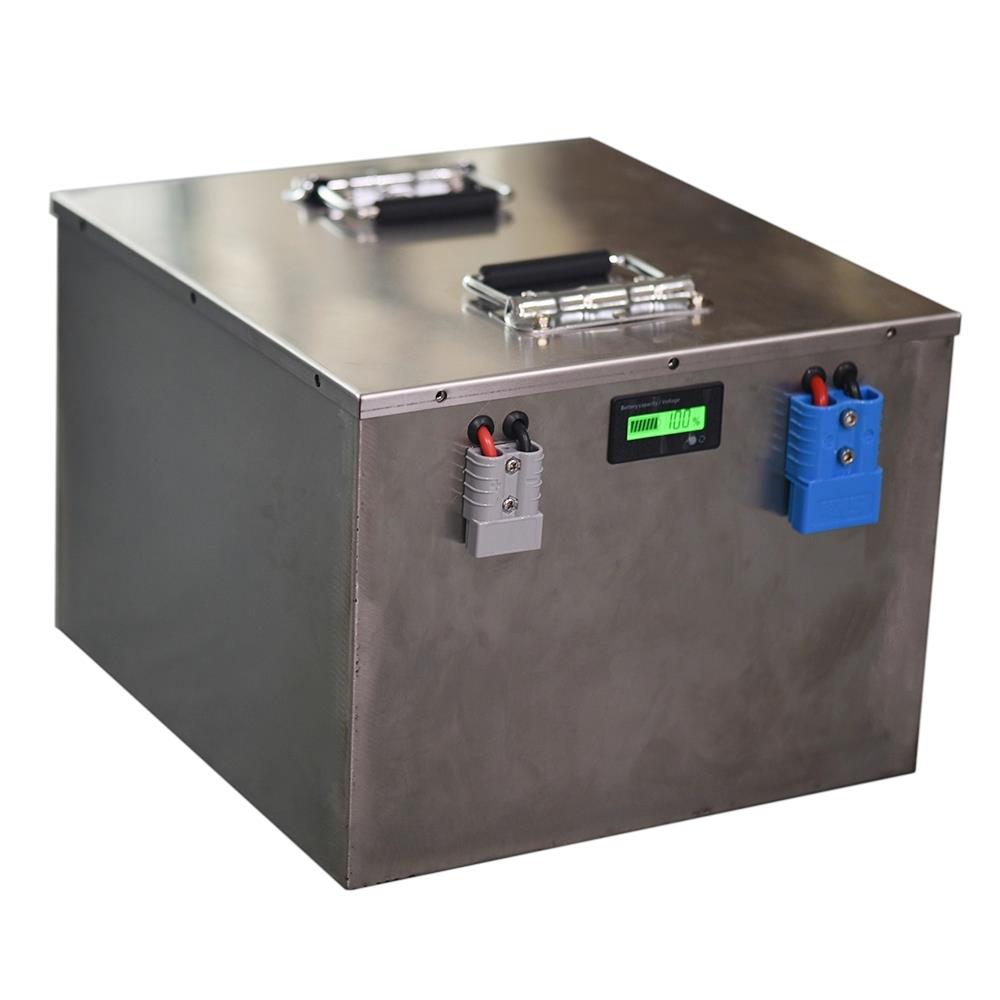

5KW Solar Panel Inverter 48v Dc LiFepo4 Battery Pack 48V 100AH
Model | 48100/15S4P |
Nominal voltage | 48V |
Charge voltage | 54.75V |
Nominal capacity | 100Ah |
Battery type | LifePO4 battery cell 3.2v 25ah pouch cell hard cover |
Single battery cell | 3.2V 25Ah LifePO4 battery c ells |

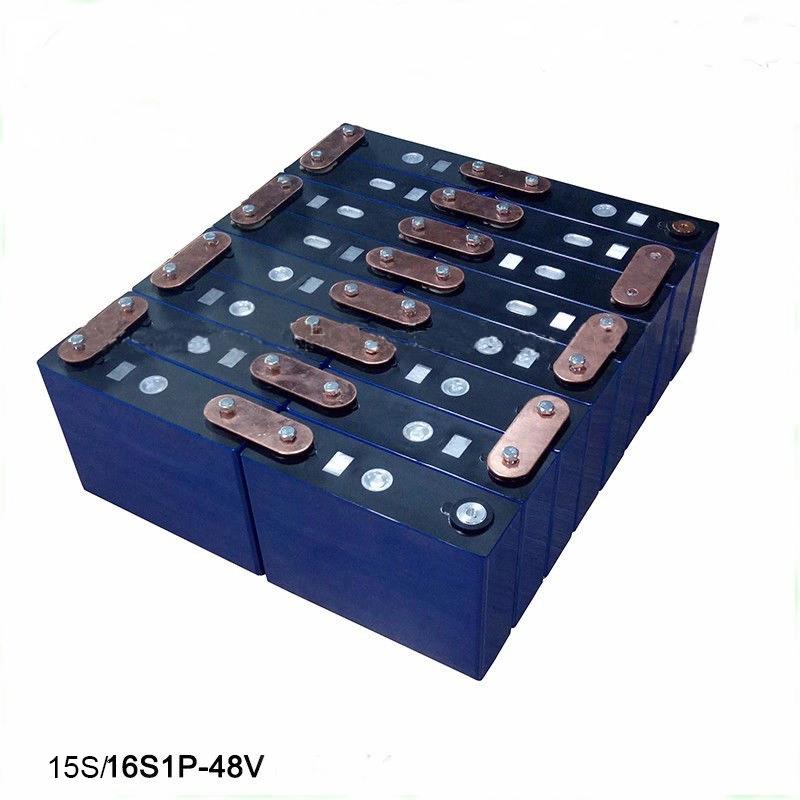

Battery configation | 15S4P 60 pcs cells |
Standard charge current | 20A |
Max charge current | 100A |
Standard discharge current | 50A |
Max discharge current | 100A |
Discharge cut off voltage | 37.5V |
Charge method | CC/CV |
Lifecycle | 2000 times 80%dod, 5000 times 65%dod, 8000 times 40%dod |
Warranty | 2 years |
Net wegiht | 48.0 KGS |
Case dimension | 530*410*270 mm |
Charge temperature | 0~45°C |
Discharge temperature | -10~55°C |
BMS protection | over-charge,over-discharge,over-current,short circuit |
Discharge port | Anderson connector |
Features | with battery capacity indicators and handle |
Advantags Of 48V 100Ah Lifepo4 Battery Pack
1. High safety, none fire or explosion,built in BMS
2. Clean and Green energy, no toxic material contained
3. Powerful battery
4. Long life cycle, Over 2000 times deep cycle.
5. No memory effect,highly efficient charge anytime
6. Operation temperature: -20-55°C
7. Small size, light weight:
8. Good performance at high temperature and high temperature resistance
9. Low self-discharge rate: < 3% monthly
10. Good consistancy
11.With battery capacity indicator which can remind the remaining capacity
12. Two handles,it is easy to carry
48V 100Ah Lifepo4 Battery Pack Application:
1.Light: headlamp, emergency light, sloar flashlight, searchlight, lanten,bicycle light, LED light, military flashlight, high-end flashlight, high power flashlight, bright flashlight.
2.Outdoor sports products: camping light, mountain bike light, solor emergency light, self-defense flashlight,
3.Customer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player, speaker, microphone, sound equipment, audio, Digital camera, vidican.
4.Home appliances products: electric mop, electric vacuum cleaner, electric children toys,
5.Medical devices
6.Instruments and meters: water meter, gas meter.
7.Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor
8.Power tools: electric drill, mower,golf carts
9.UPS, GPS
10.Solar energy storage,wind energy storage,solar electric car
Applications:
EV bus golf cart scooter car LiFePO4 battery pack 48v 100ah 5000W
LED light system;
Solar battery / solar panel battery
-Portable VTR/TV, tape recorders, radios, etc.
-Power tools, lawn mowers and vacuum cleaners
-Cameras and photographic equipment
-Portable measuring equipment
-Various power toys and recreational equipment
-Uninterruptible Power Supply
-Communications and electric equipment
-Emergency lighting equipment
EV Bus electric pure bus battery
EV car battery
Golf cart battery
Scooters electric ebike battery
EV EBIKE VEHICLES Battery
Truck car battery
