100ah Lifepo4 12 Volt Deep Cycle Battery For Solar Energy Storage
Attention: this 12.8v LiFePo4 battery pack can make in series,contact us and tell us your purpose for the battery (applications) ,then we can make the batteries as your requirement.
Print this Page
Bookmark this
Inquiry product
E-mail UsLithium Advantages Compare With Lead-Acid:
1) Long cycle life
2) Maintenance-free operation
3) Good safety performance
4) Low self-discharge and fast charge
5) Environment friendly
6) High capability and stability
etc..
Product Parameters:
| Cells (assembly pack) SPEC | Model | WXLH-12V |
Capacity | 20Ah | |
Rated voltage（V） | 3.2V | |
Typical Impedance (mΩ) | ≤1.5mΩ | |
Battery material | LFP | |
Battery Spec | Combination method | 4 Series 5 Parallel |
Combination method | ≥100Ah | |
Rated voltage/power | 12.8V/1280W | |
Max. charge voltage | 14.6V | |
Resistance | ≤7mΩ | |
Max continuous charge current | 50A | |
Max continuous discharge current | 100A | |
Peak Discharge Current (for 5s) | ≥300A | |
Weight (Approx.) | 11.5KG | |
Max. dimension（LtimesWtimesH）(mm) | 325*170*220mm | |
| Operating temperature | Charge temperature | -0℃～50℃ |
Discharge temperature | -20℃～65℃ | |
| Protection Board (BMS) | Single cell over-charge cut-off voltage | 3.85V |
| over-charge release voltage | 3.65V | |
| Single cell under-discharge cut-off voltage | 2.3V | |
| Discharge release voltage | 2.5V | |
| Over-discharge cut-off current | 300A | |
| Over-discharge cut-off current delay | 5S | |
| Short-circuit protection | Yes | |
| Short-circuit protection delay | 500uS | |
| Condition for the recovery of over-current and Short-circuit | Self |

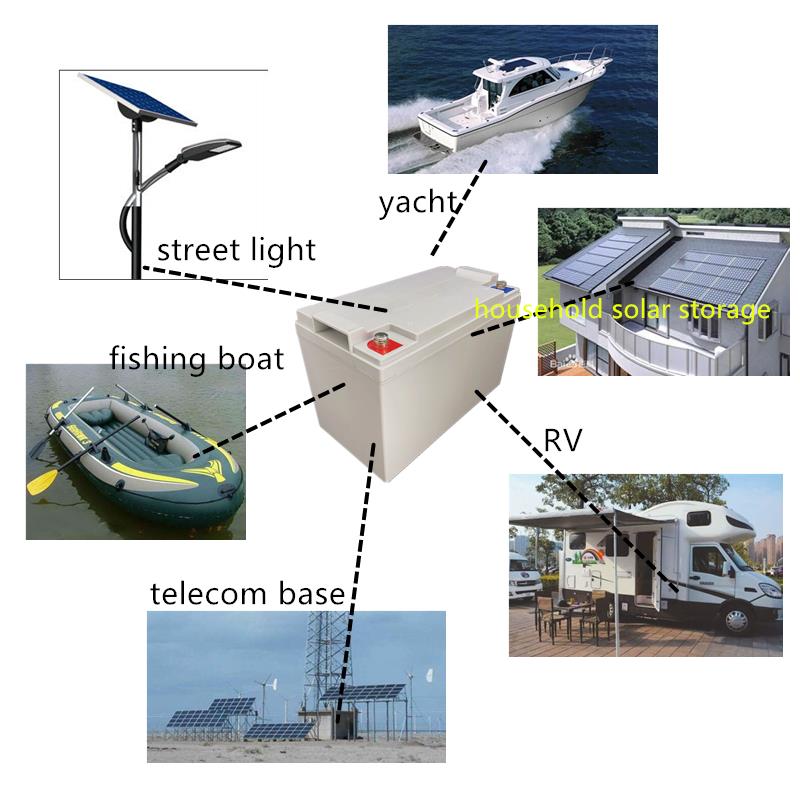

Applications Of Such Battery :

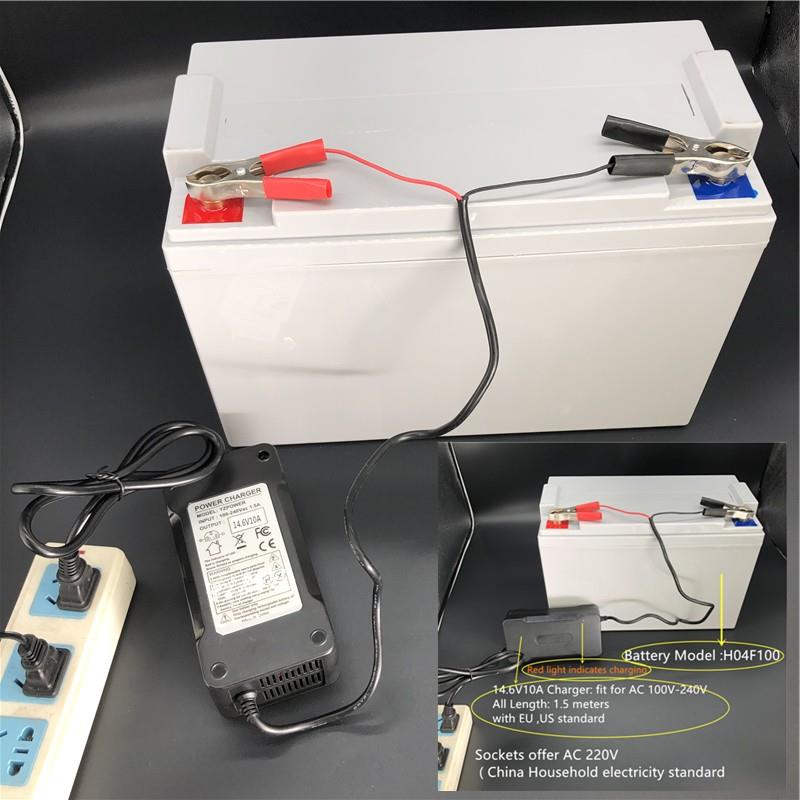

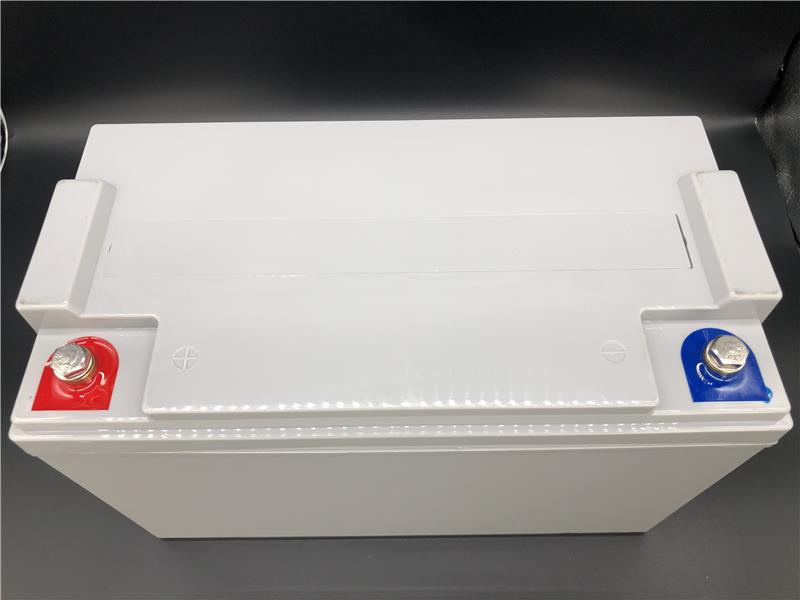

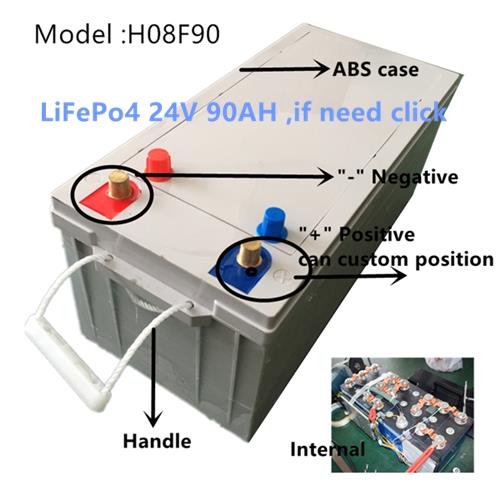

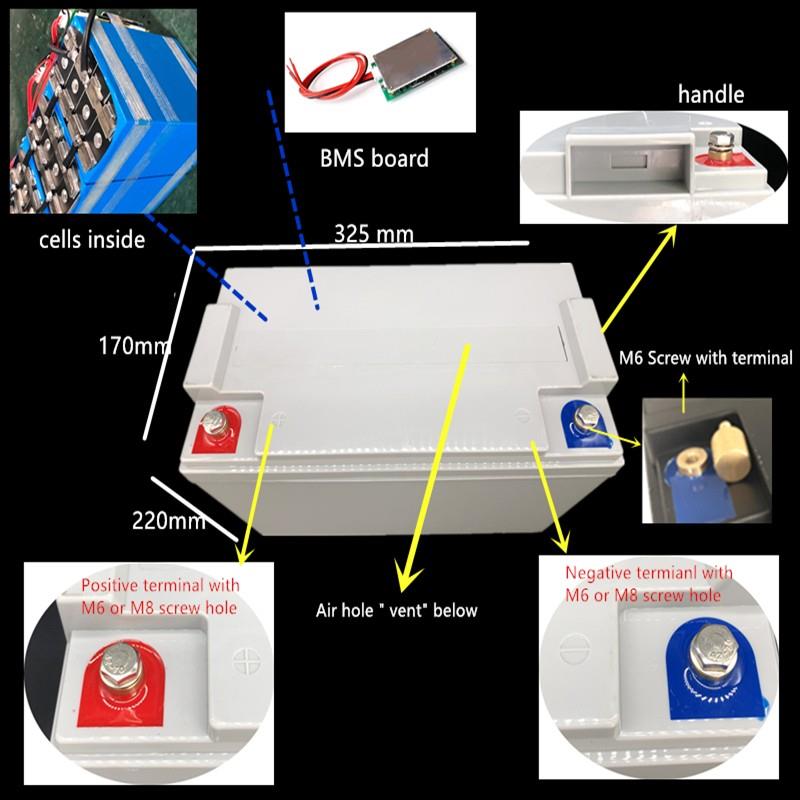

More Details Explain According Photos:
About Prices : Dear Customers ,If You Wanna To Be Our Long Business Partner , You Can Share Your Email Box , Whatapps,Skype ,Facebook Etc.
Tips:
1. We Usually Send Out Battery By International Commercial Express, UPS ,FedEx ;But Now Battery Belong To Some Dangerous Goods In Some Countries , So We Send Them By Special Line .
2. It Takes 5-10 Days By Express Send To Destination ( Not Including The Lead Time ) ,If Send By Special Line May Takes More Than 20 Days .
3. Battery Goods Belong To Sensitive Items , We Produce The Best Battery , So Welcome Customer Come To Our Factory
