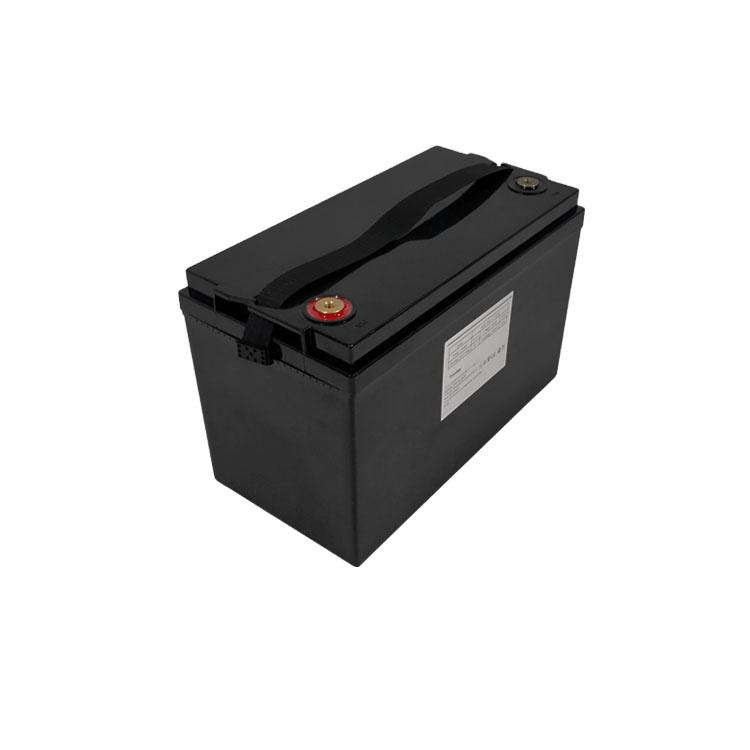

LiFePo4 Battery 25.6V50Ah With Prismatic Cells
Lifepo4 Battery 25.6V50Ah 8S1P With Prismatic Cells
Print this Page
Bookmark this
Inquiry product
E-mail UsProduction Name:
Deep Cycle 3000 Times Lithium Lifepo4 Battery 25.6V 50Ah 8S1P
Battery cell Type certificated CE/MSDS/IEC62133 )
Product Specification
Deep cycle 2500 times Lithium lifepo4 battery 25.6V 50Ah 8S1P
Nominal voltage | 25.6V 50Ah lifepo4 battery :330*171*220mm |
Charge voltage | 29.2V |
Nominal capacity | 50Ah |
Battery cell | 50Ah |
Battery configation | 8S1P |
Internal resistance | ≤220mΩ |
End of charge voltage | 29.2V |
End of charge current | 100mA |
End of discharge voltage | 20V |
Charge method | CC/CV |
Max continuous charge current | 50A |
Max continuous discharge current | 50A |
Max pulse discharge current | 100A/10S |
Weight | 11.0KG |
Case material | metal casing |
Case dimension | 255*165*220mm |
BMS protection | 8S-50A , over-charge,over-discharge,over-current,short circuit |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Storage temperature | -10~45℃ |
Lifecycle | 3000 times at 85% dod, 6000 times at 65% dod |
Warranty | 2 years |
Advantages Of Deep Cycle 3000 Times Lithium Lifepo4 Battery 25.6V 50Ah
1) Environmental friendly.
2) High temperature performance,the maximum working temperature can be 70℃
3) High capacity.
4) Fast charging.
5) Safety in use.
6) Long cycle life, chargeable up to 3000 times at 85% dod.
7) No memory effect.
8) Doesn’t contain Mercury, No fire, No explosion, No leakage.
9) High temperature resistance.
10) Stable discharge platform , it is can support large current and high power to charging and discharging.
11)With Anderson connector for charge and discharge port
12)With display screen which can show the voltage and remaining power
